VOLTAGE REGULATOR RECTIFIER HONDA SXS 1000

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

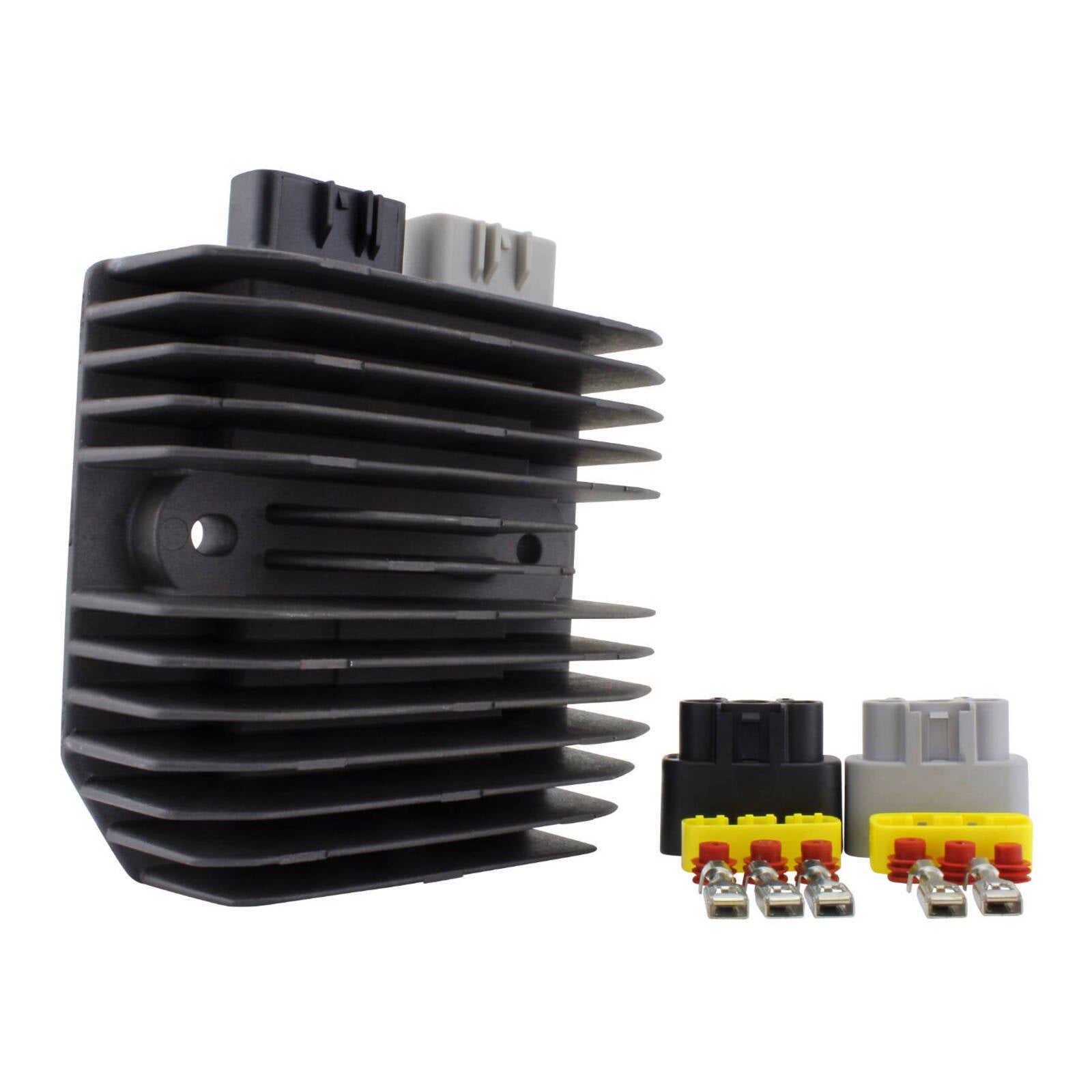

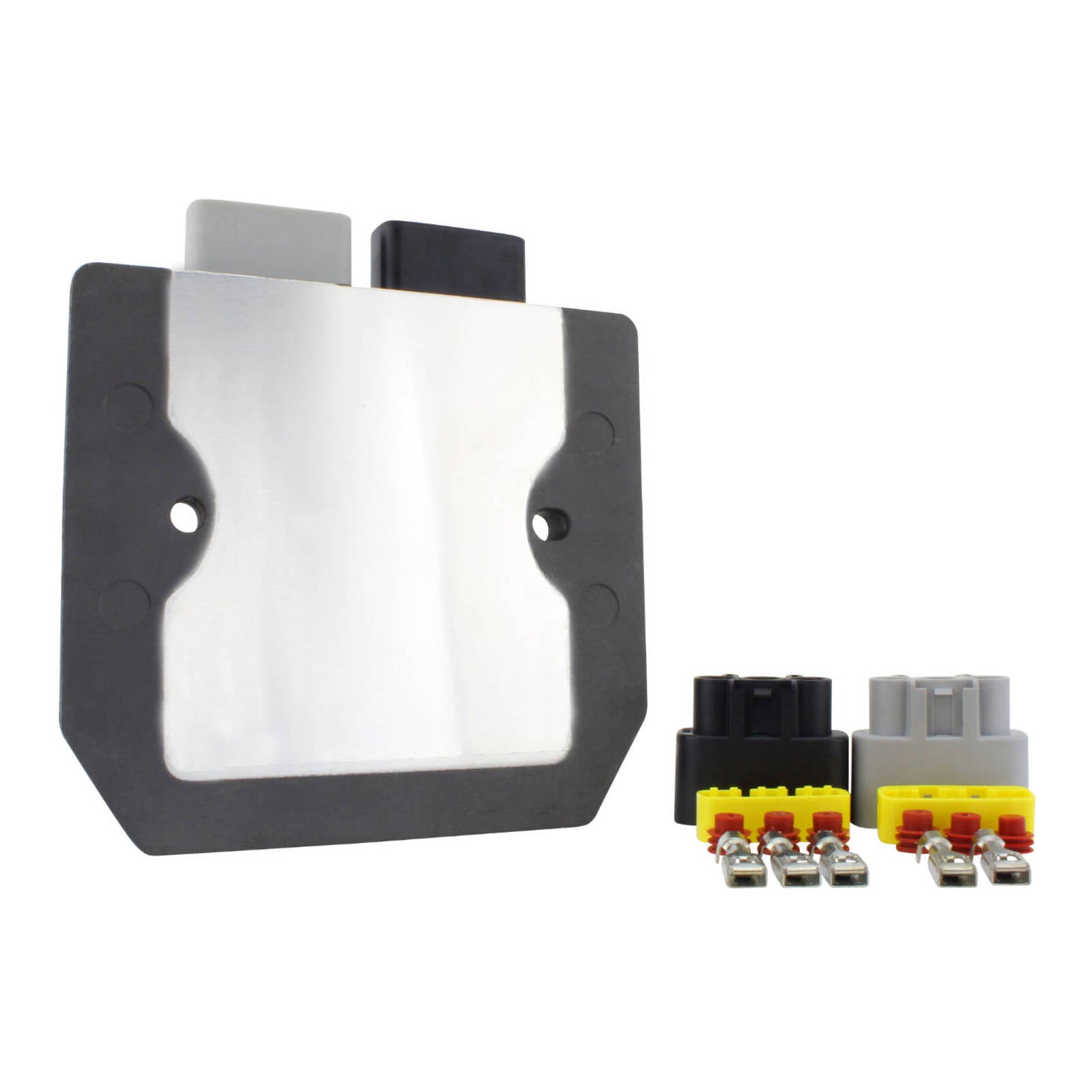

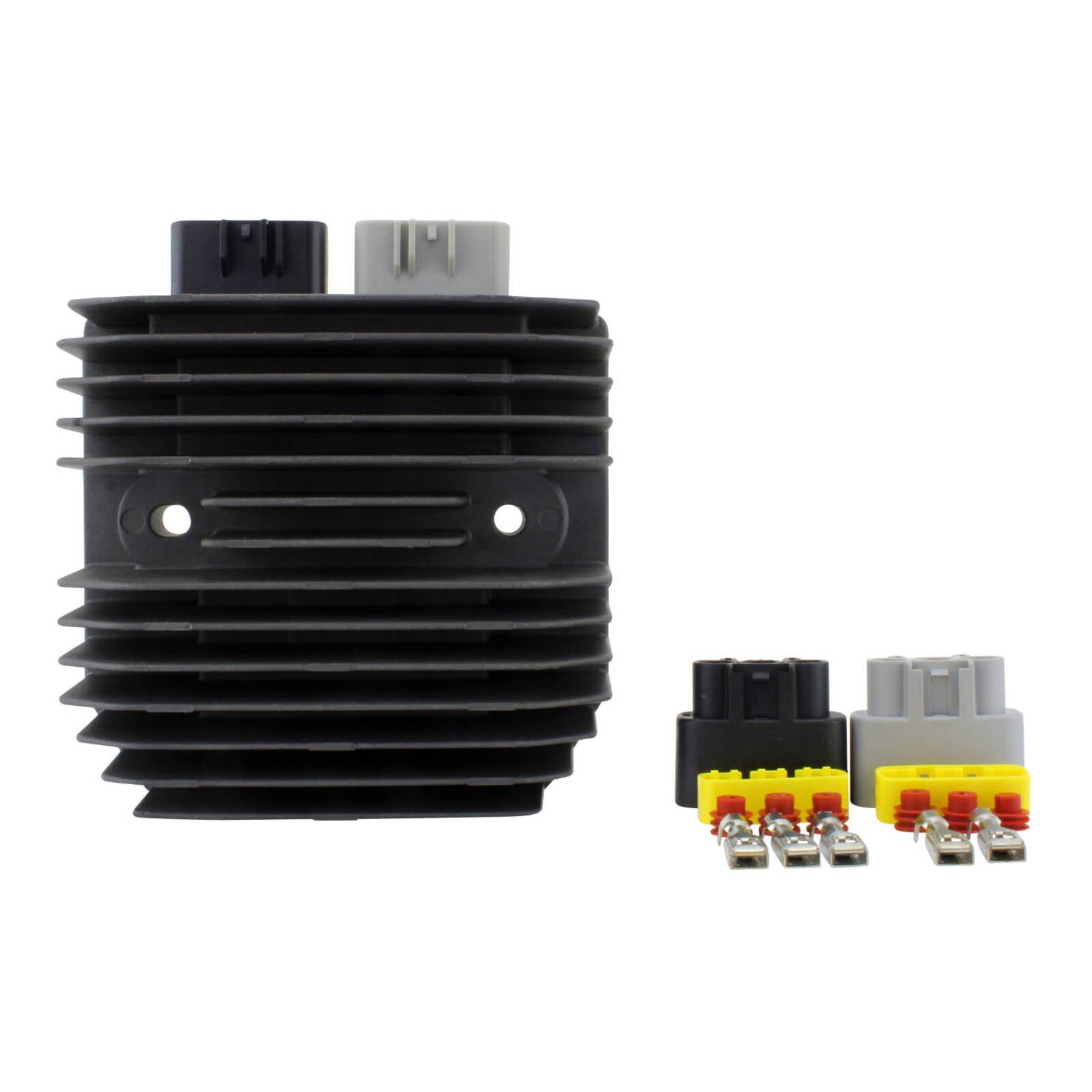

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play direct fit easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

Dimensions:

• Wid th: 129 mm
• Length: 120 mm
• Height: 45 mm
• Distance between fixation holes center to center: 81 mm

Other specifications:

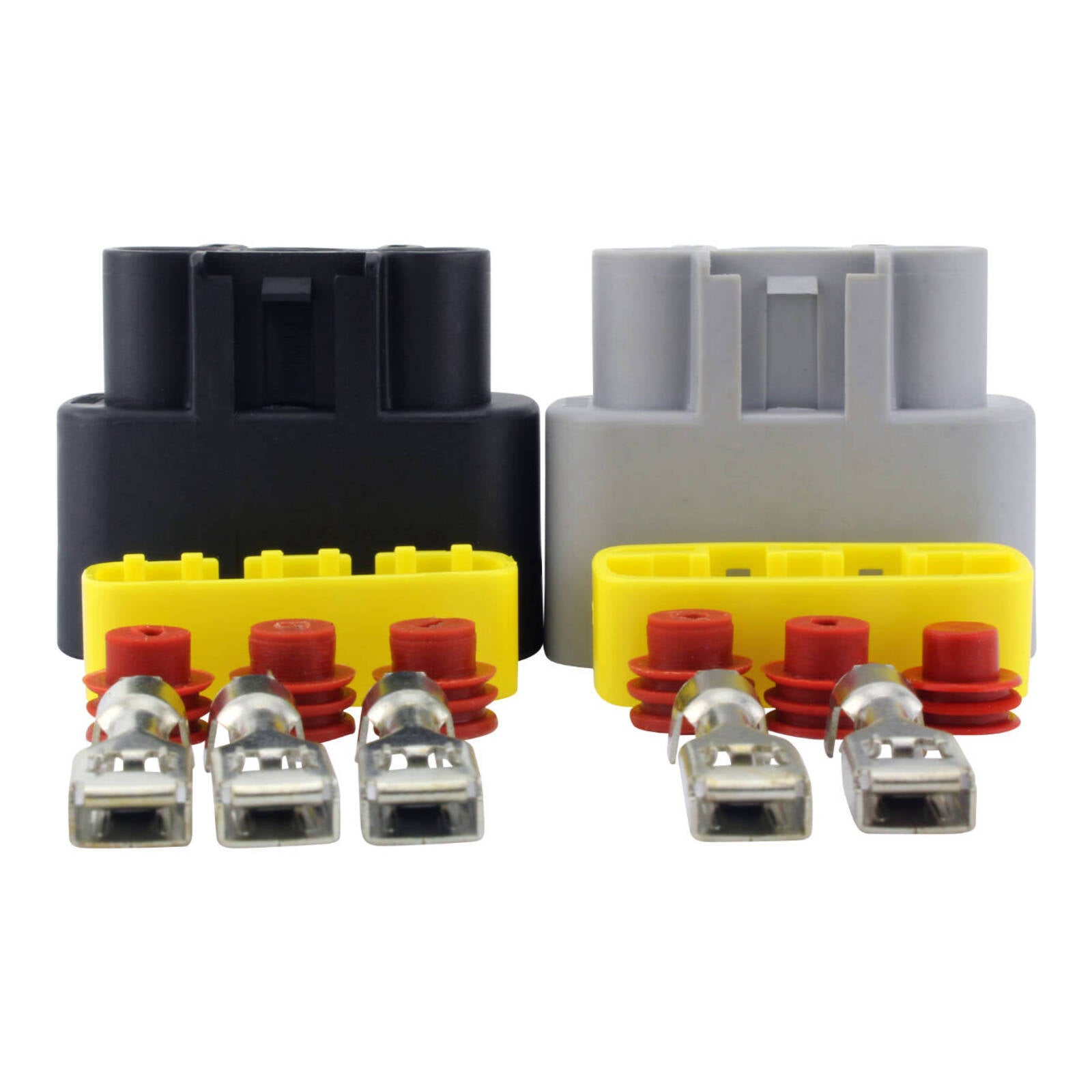

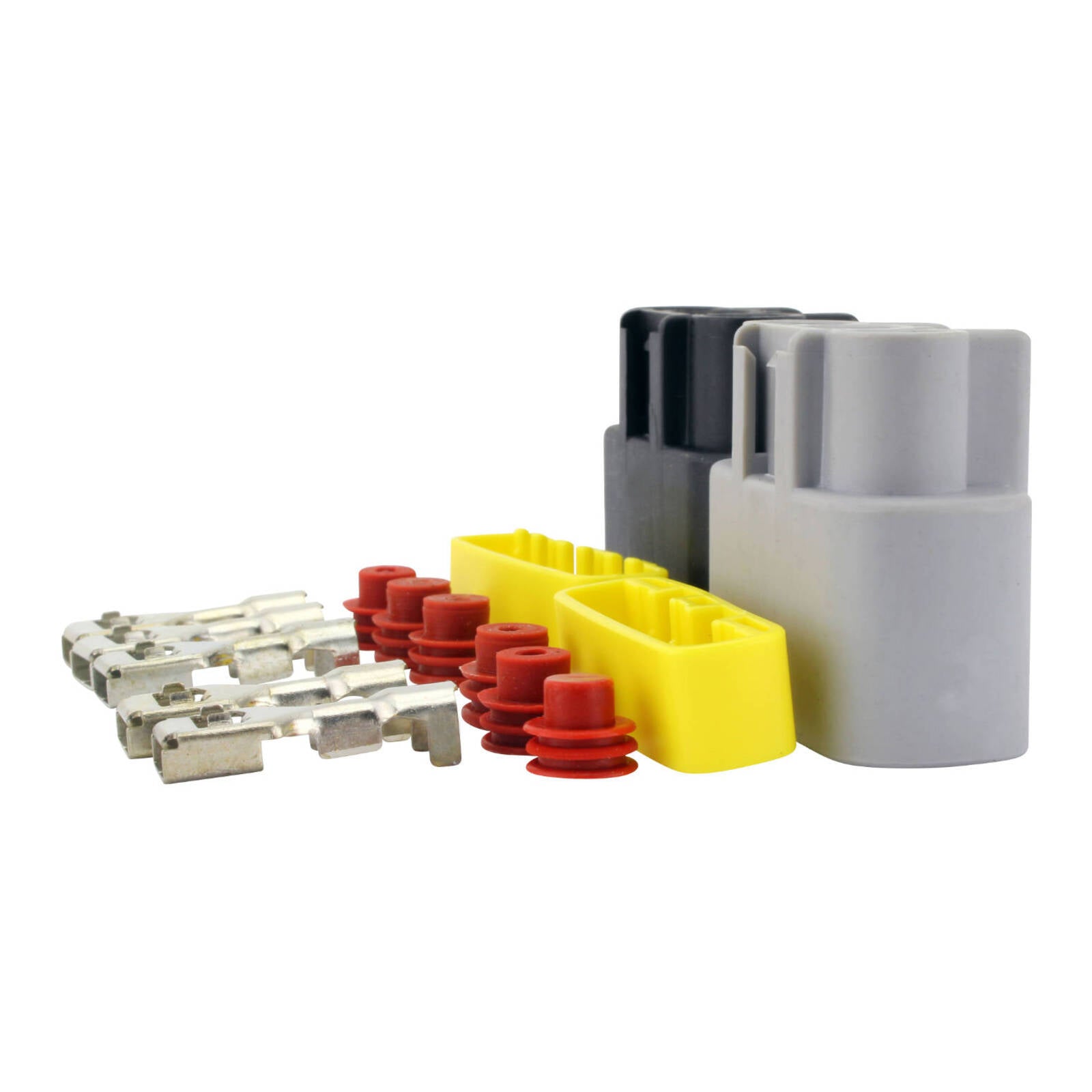

• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
