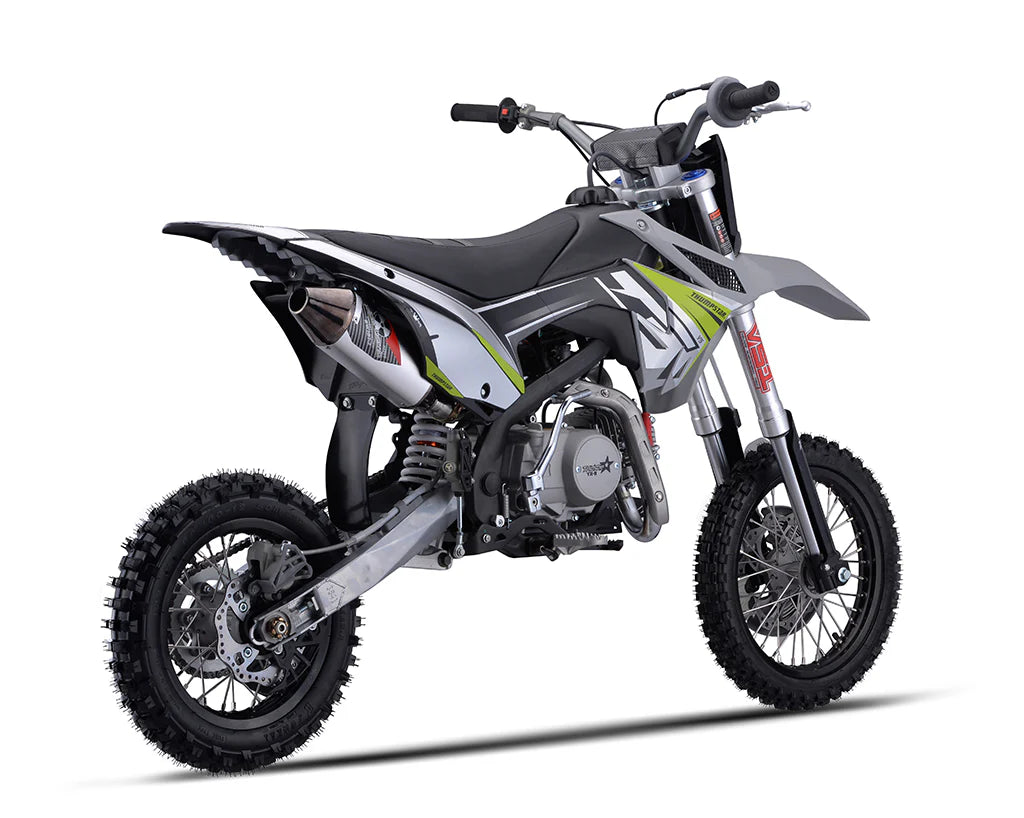

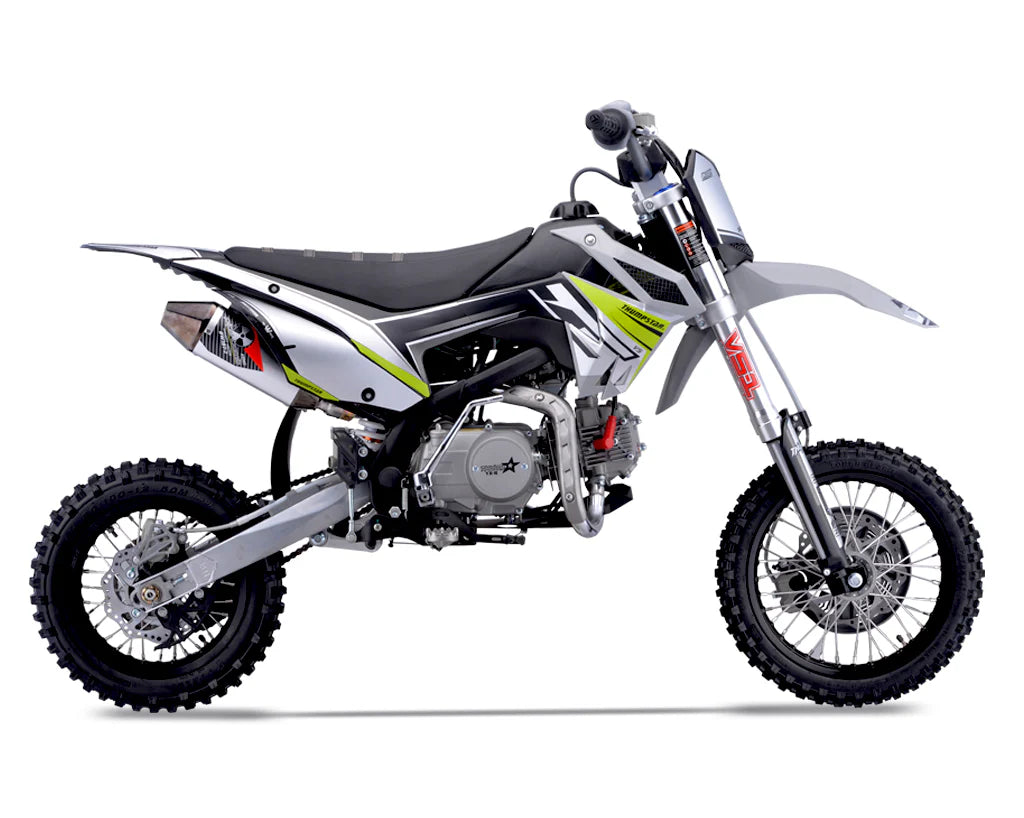

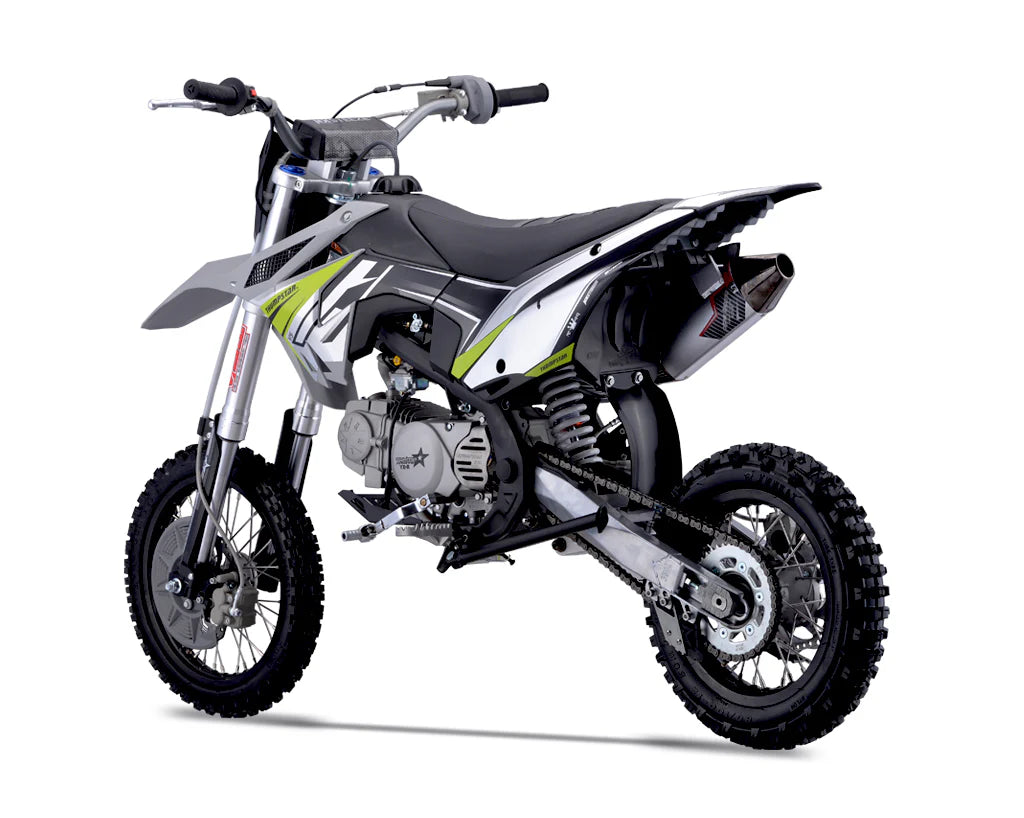

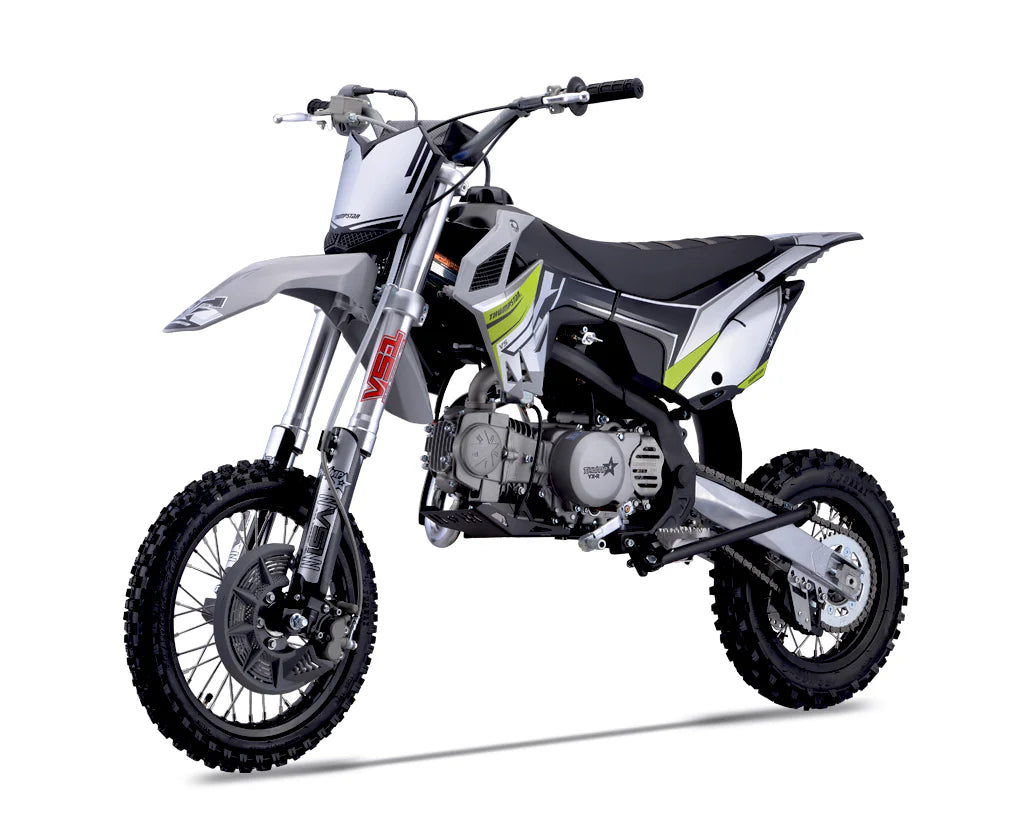

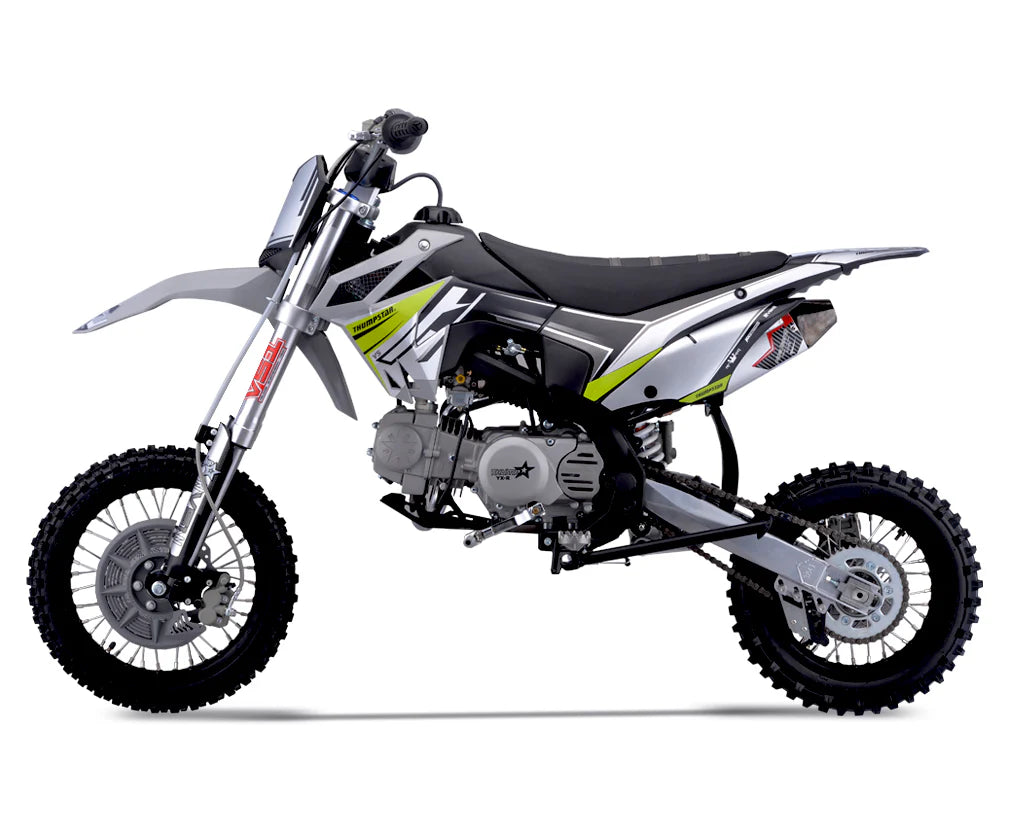

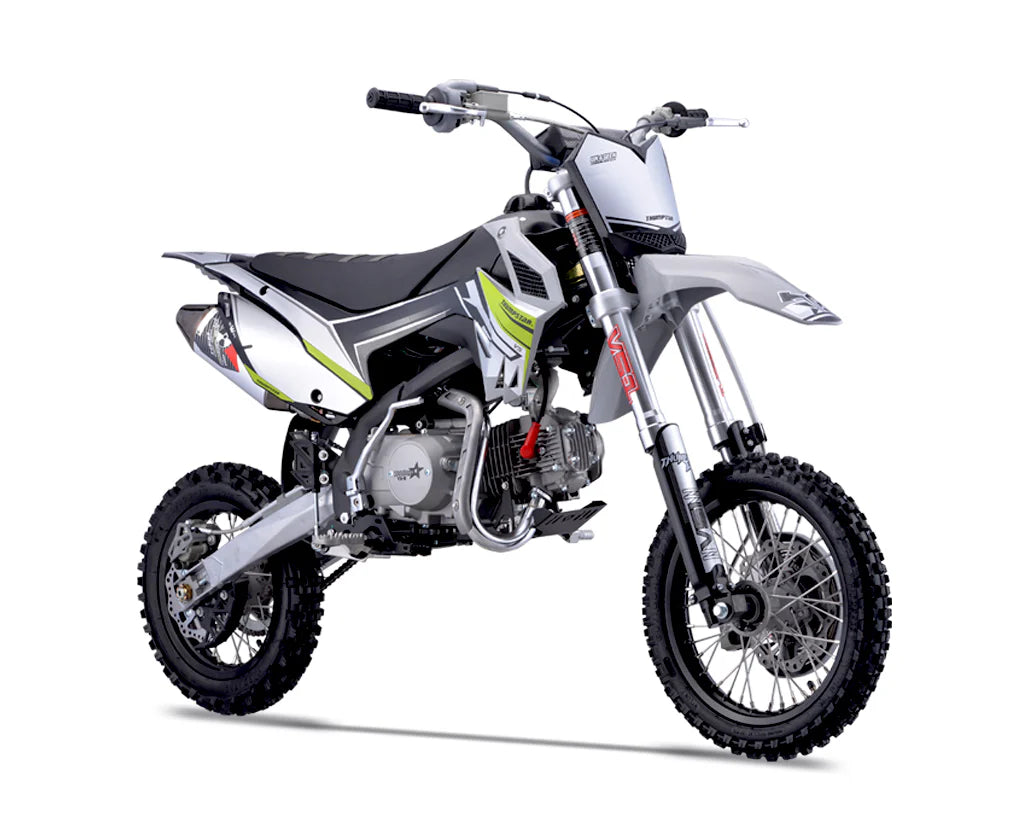

Thumpstar TSX 125cc GR Dirt Bike

Thumpstar TSX 125cc GR Dirt Bike

PART No. SKU:

Regular price
$2,299.00$2,299.00
$2,299.00
Regular price Sale price $2,299.00
Sale Sold out
GST included. Shipping calculated at checkout.
Body color
Ships as soon as possible, please call us for an ETA

The TSX125 has received a complete overhaul for Version 5. Gone are the days of facing struggles of dealing with issues which are common on many other mini bikes. We have gone back to the drawing board and scratch built a New Frame, Airbox, Linkage Suspension, Hubs and Rims, and much more. This has not only allowed our bikes to become stronger and more reliable, but also gives the rider peace of mind knowing no detail has been left untouched.

Our design team has produced a piece of engineering art. The frames are a new Quad Bar which has made them stronger than ever. Along with the frame developments we made space and rigged them with mounts to accommodate our new caged airboxes. This allows a better air filtration system while increasing airflow into the carburetor, and in turn, more horsepower. A first on pit bikes and minibikes alike, we have scaled down the linkage from the likes of a full-size race bike, and fitted it to these smaller sized 125s. The linkage provides a much smoother ride than traditional PDS style suspension, which allows for faster cornering, high and low speed adjustments, and increased rider comfort. We have redesigned our hubs and created space for a much heavier duty 20mm rear axle, coupled with stainless spokes and alloy rims, which provide our strongest wheels to date.

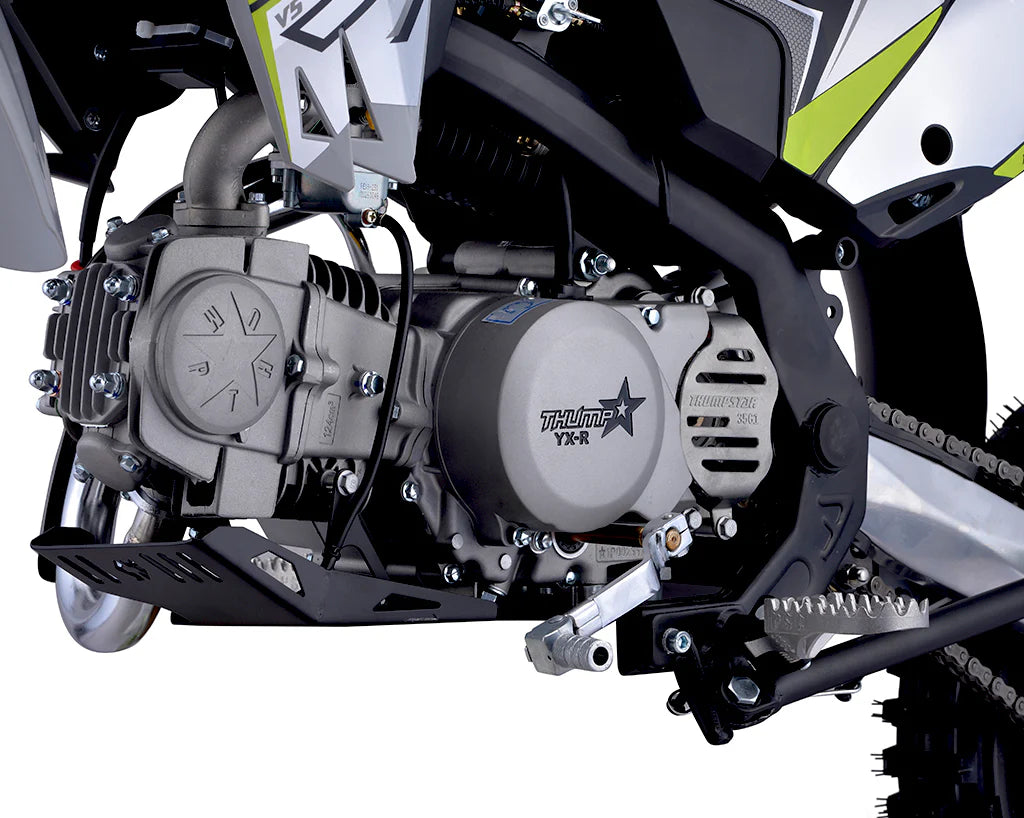

ENGINE & TRANSMISSION
Engine YX | 4 Stroke
CC Rating 125cc
Gearbox Manual | 4 Speed (N1234)
Starter Kick
Carburetion Mikuni VM22 26mm
Exhaust Pipebomb DW1 | 38mm Exhaust System
Final Drive PSC 6 Bolt Sprocket | 428 HD Chain
Top Speed 90kph / 55mph (depending on gearing)

SUSPENSION, BRAKES, & WHEELS
Suspension Front VS1 Inverted Forks | Length 770mm | 45/48mm Fork
Suspension Rear VS1 Linkage U Shock | Length Adj 350mm (+10mm)

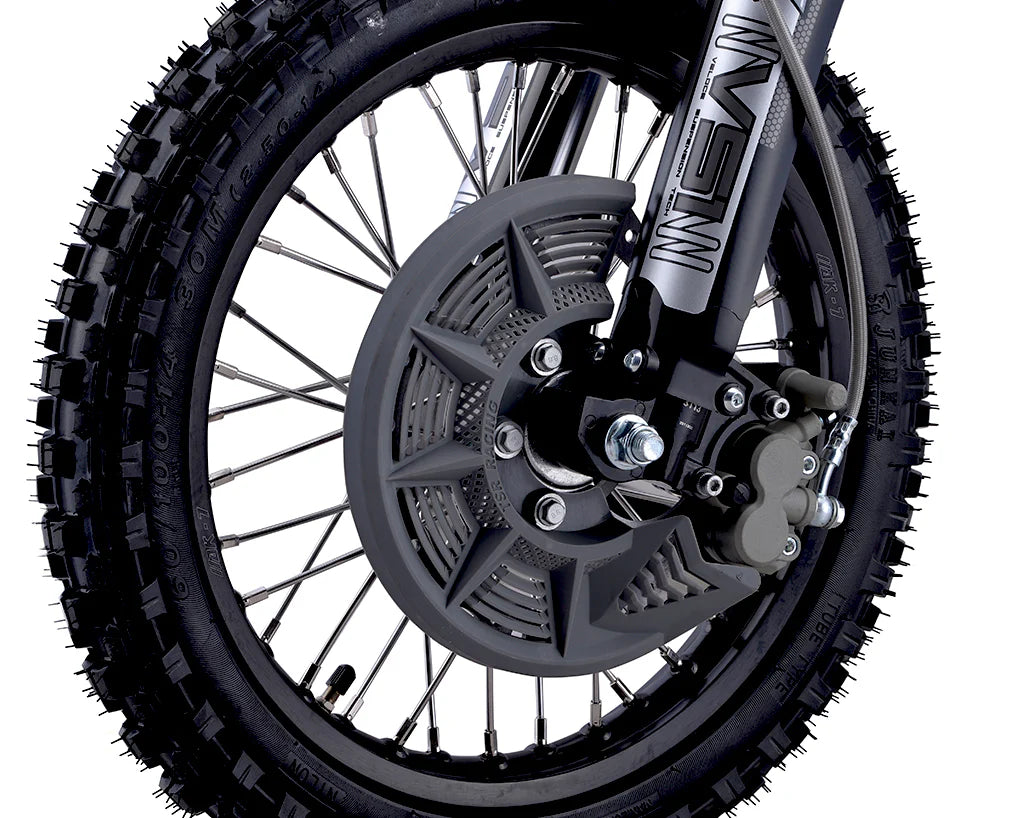

Brakes Front 220mm Disc | HSK Dual Piston
Brakes Rear 190mm Disc | HSK Single Piston
Wheel & Tire Front 7075 Alloy Rim | 70/100-14
Wheel & Tire Rear 7075 Alloy Rim w/ Rim Lock | 80/100-12

DIMENSIONS & WEIGHT
Wheelbase (axle to axle) 1260mm | 50"
Seat Height 830mm | 33"
Product Weight N.W | G.W 80/90 kg | 176/198 lbs
Tank Capacity 3.4 Litres | .9 Gallon
Product Packing Size 1420x430x640mm | .40m3

* Please note: Shipping charges may vary depending on your location, it is not a flat rate & $200 is the minimum charge.. Please contact us to get a quote prior to purchasing
