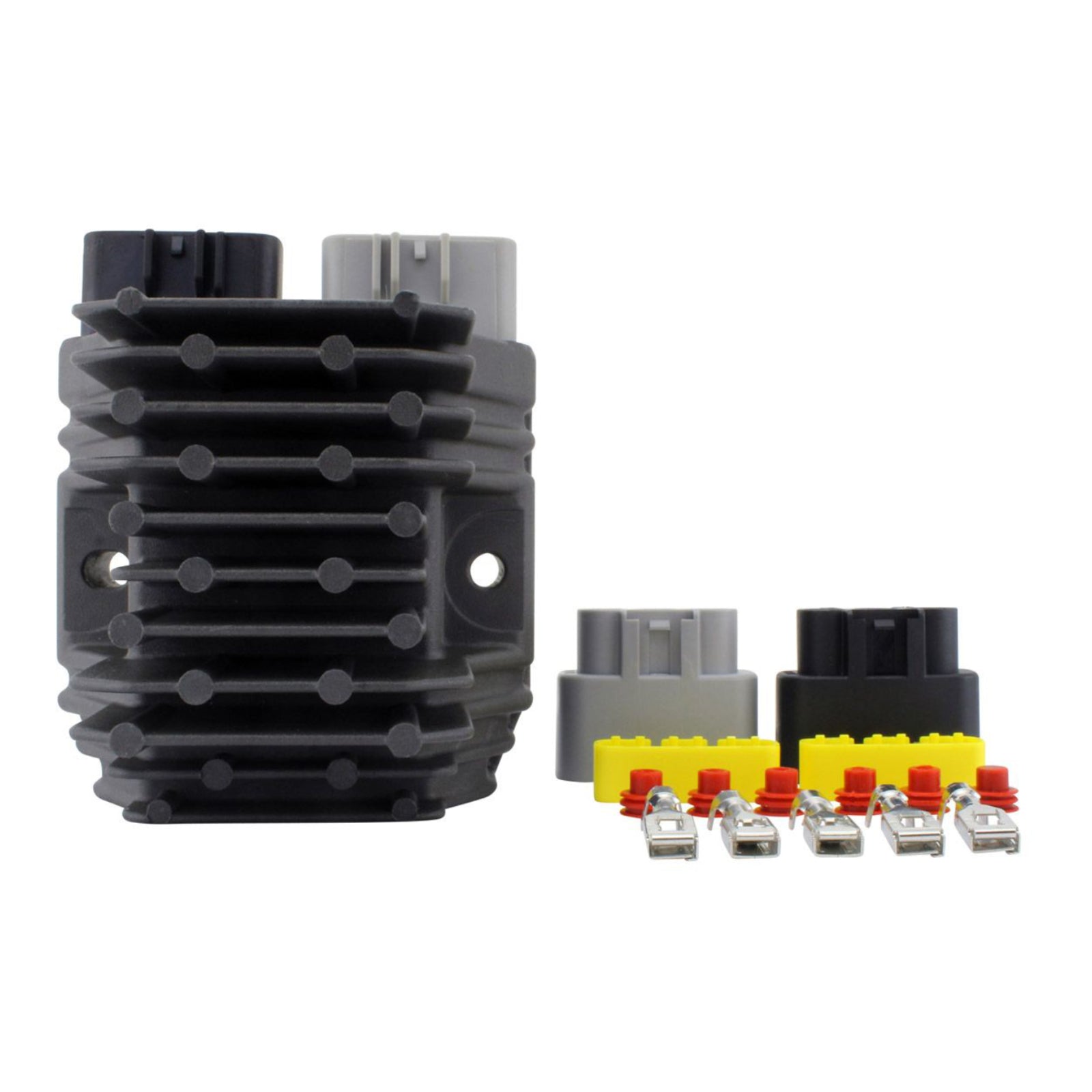

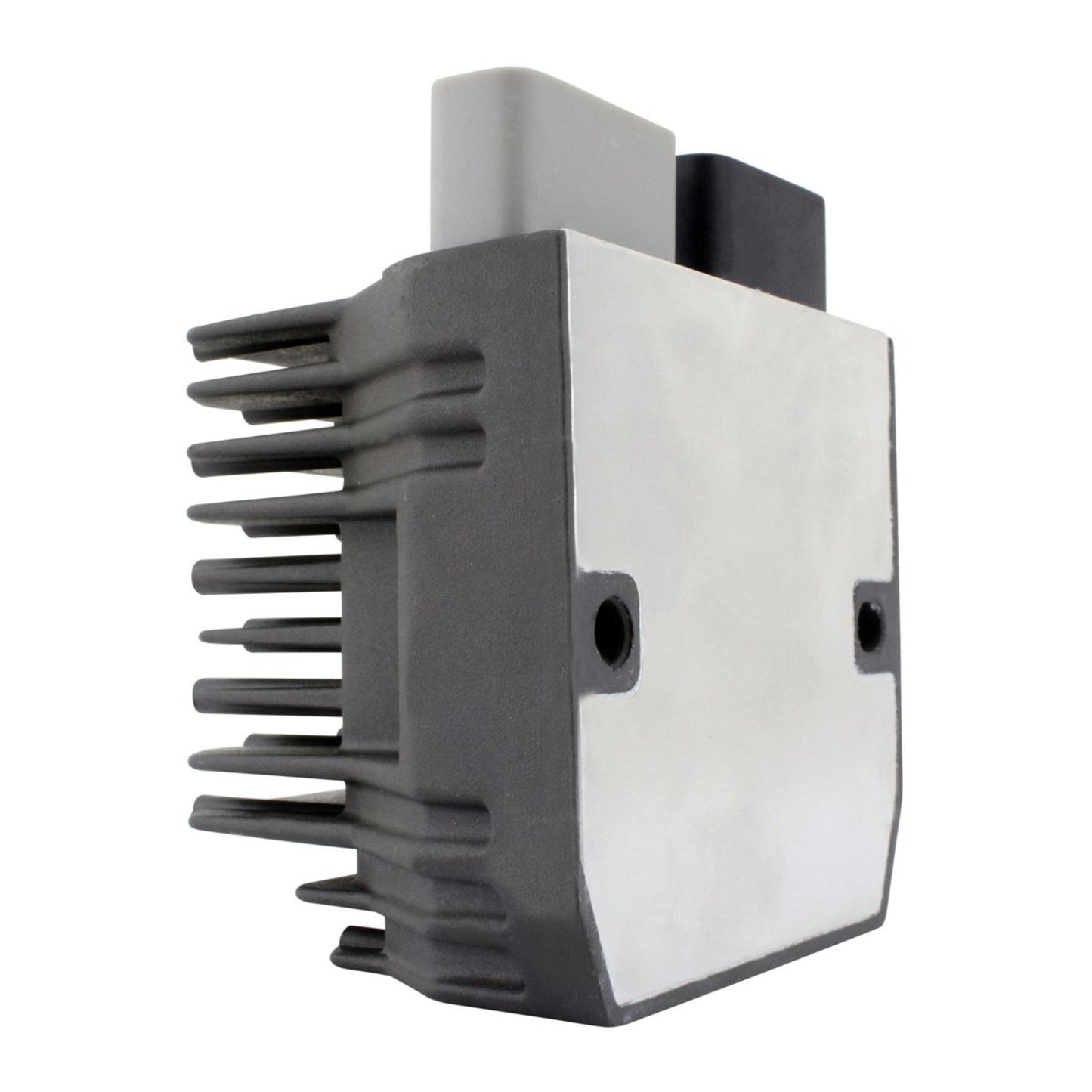

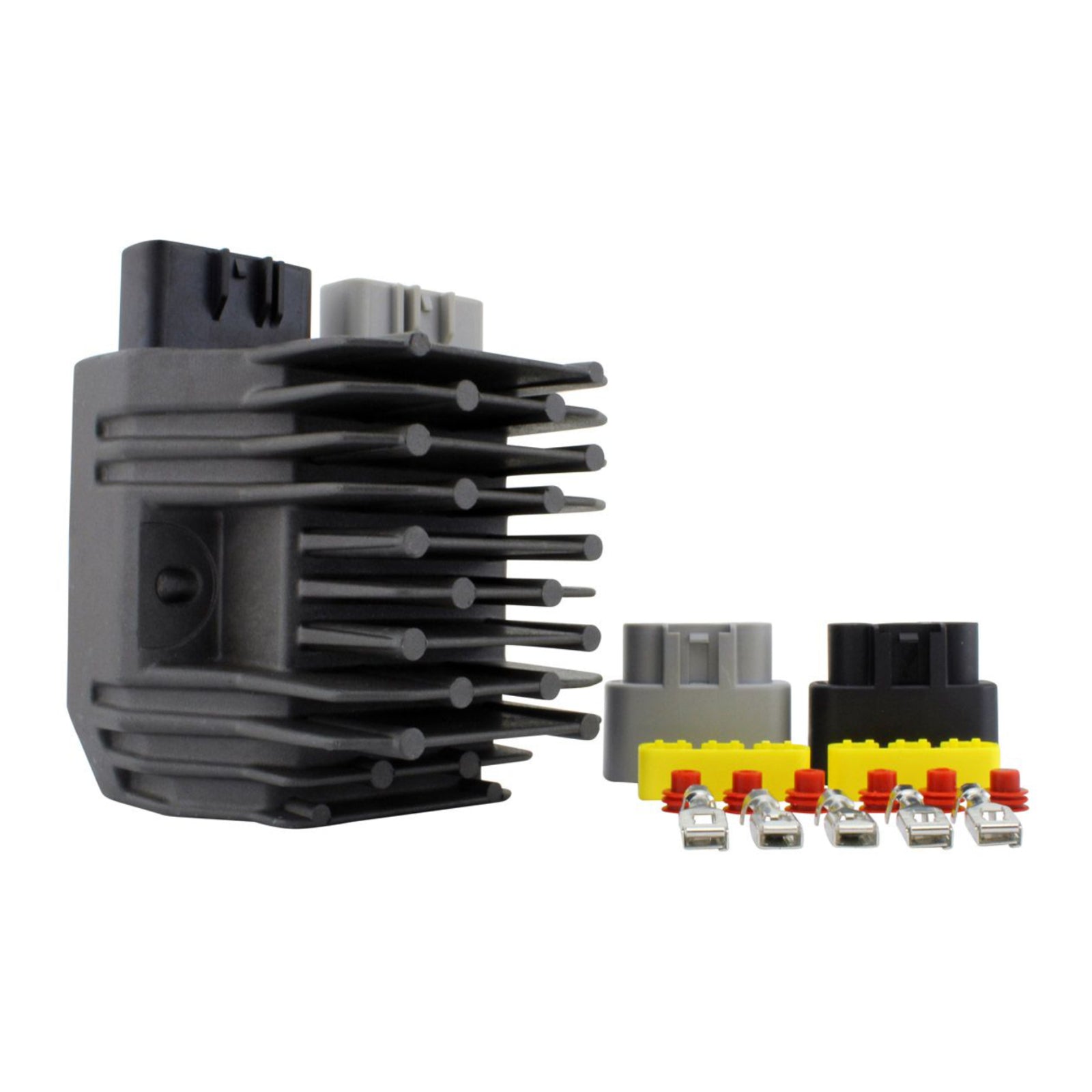

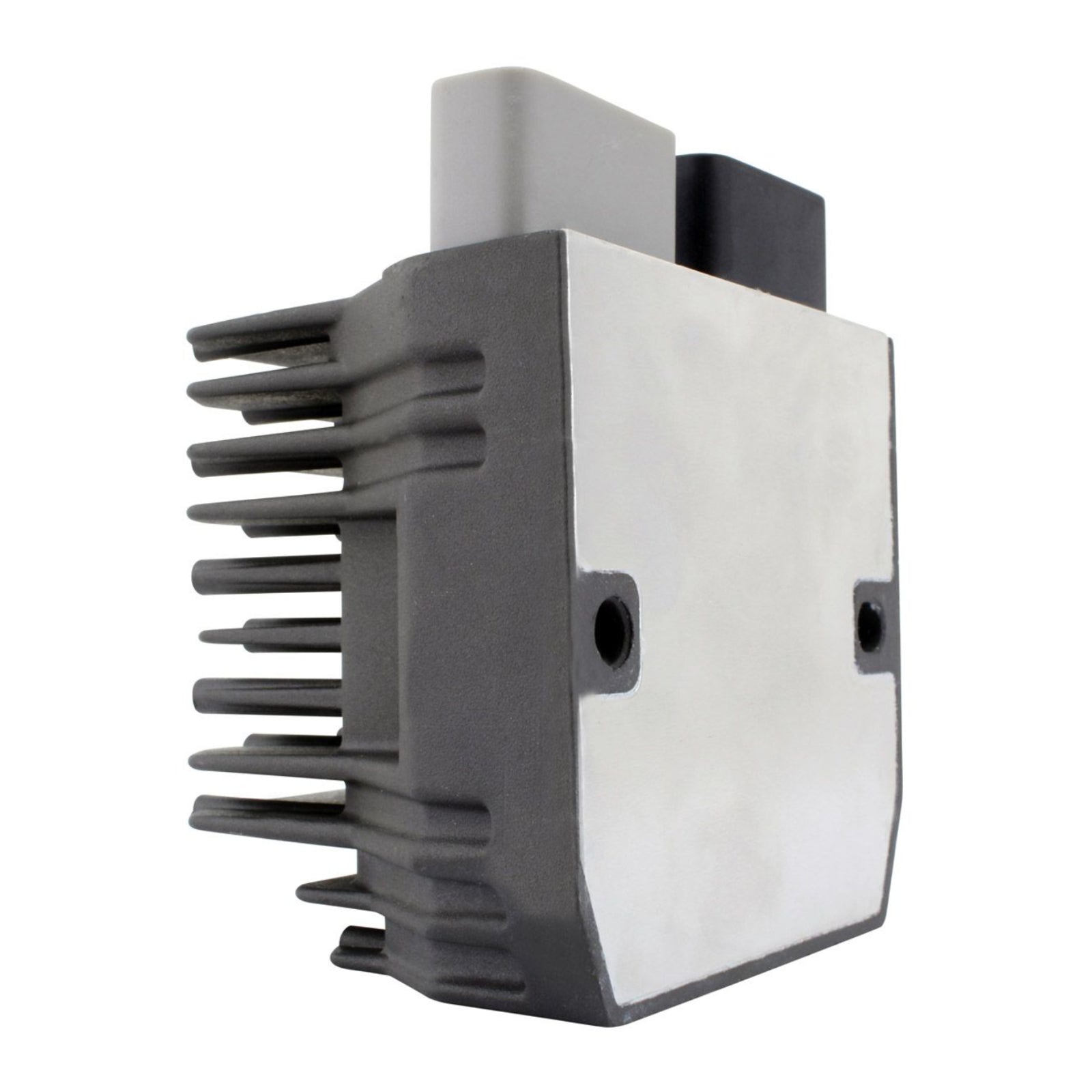

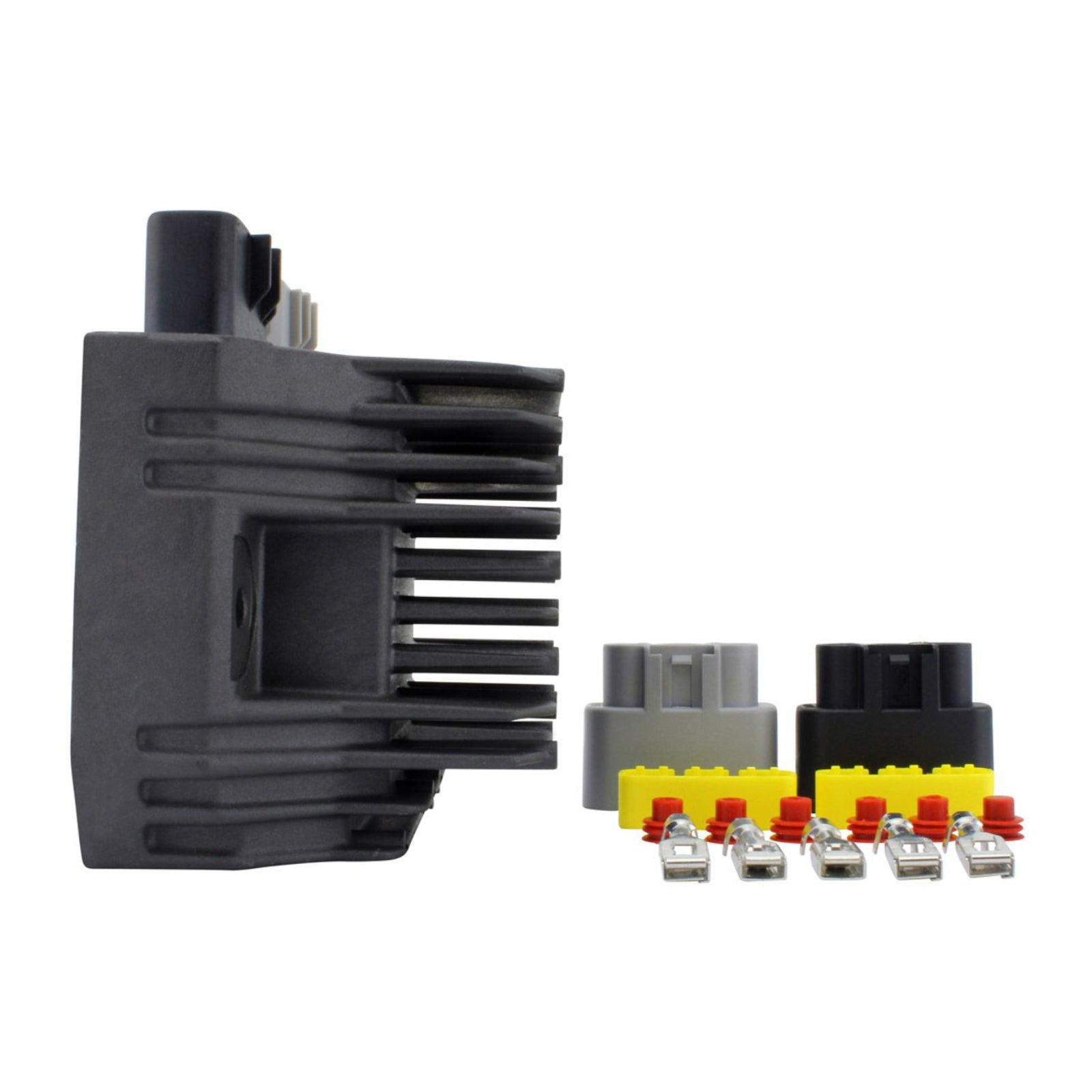

MOSFET REGULATOR ASSTD YAM R1 2004-06 (RMS020-107339)

It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode style regulators. In addition this rectifier has overheat protection rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play direct fit easy installation
• The quality exceeds the OEM equipment
• Higher grade of electric components
• All shipped products are tested

All item pictures are accurate if in doubt do not hesitate and compare our item to your original part.

Dimensions:

• Width: 90 mm
• Length: 84 mm
• Height: 78 mm
• Distance between fixation holes center to center: 68 mm

Other specifications:

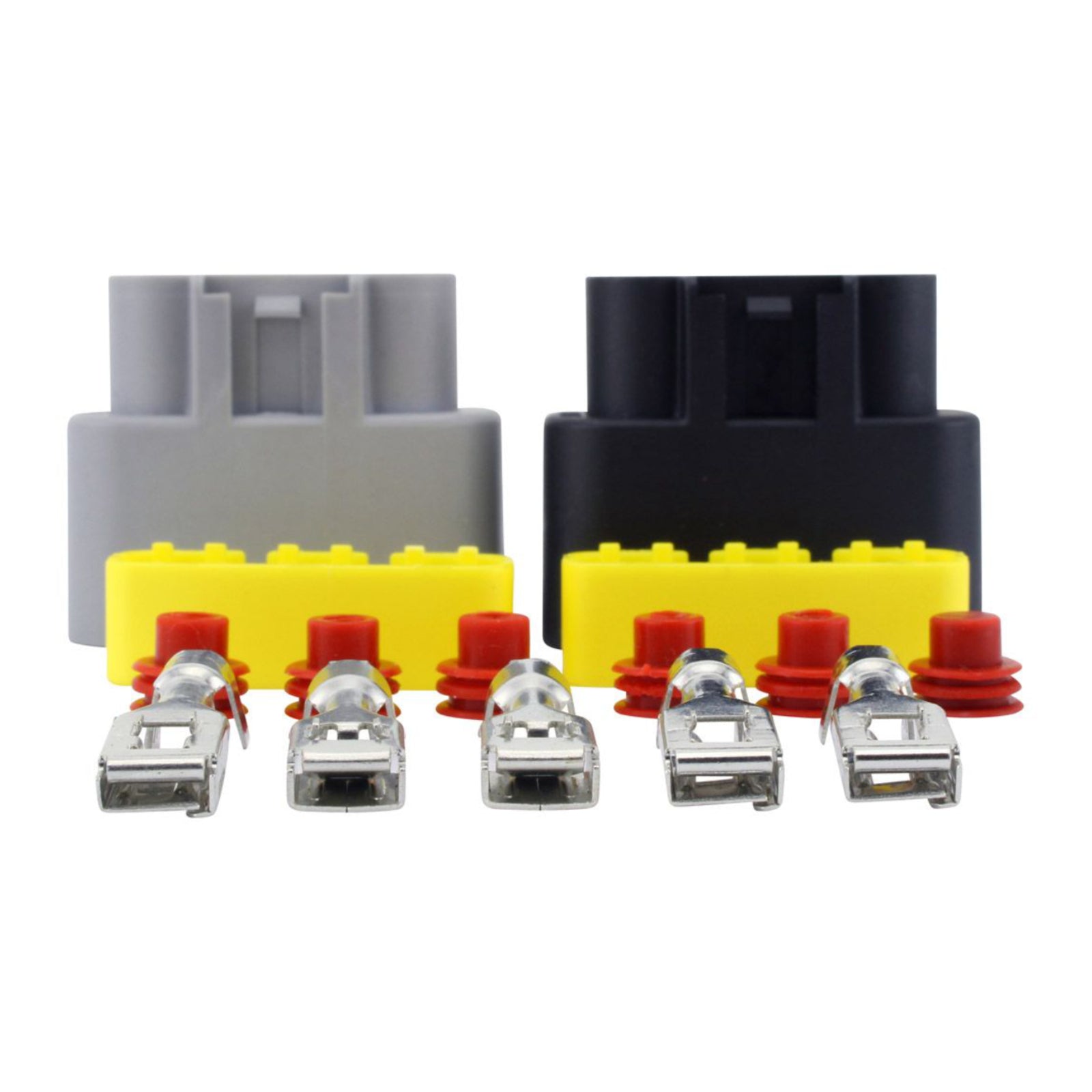

• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: Less than 15 V
• Operating Temperature: -20°C to 85°C
