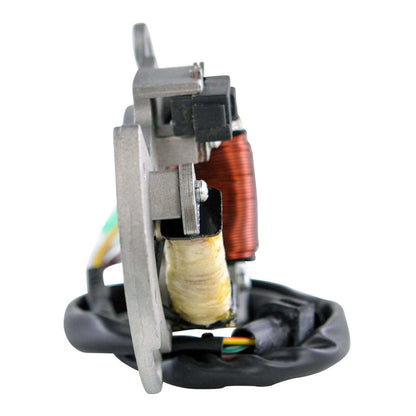

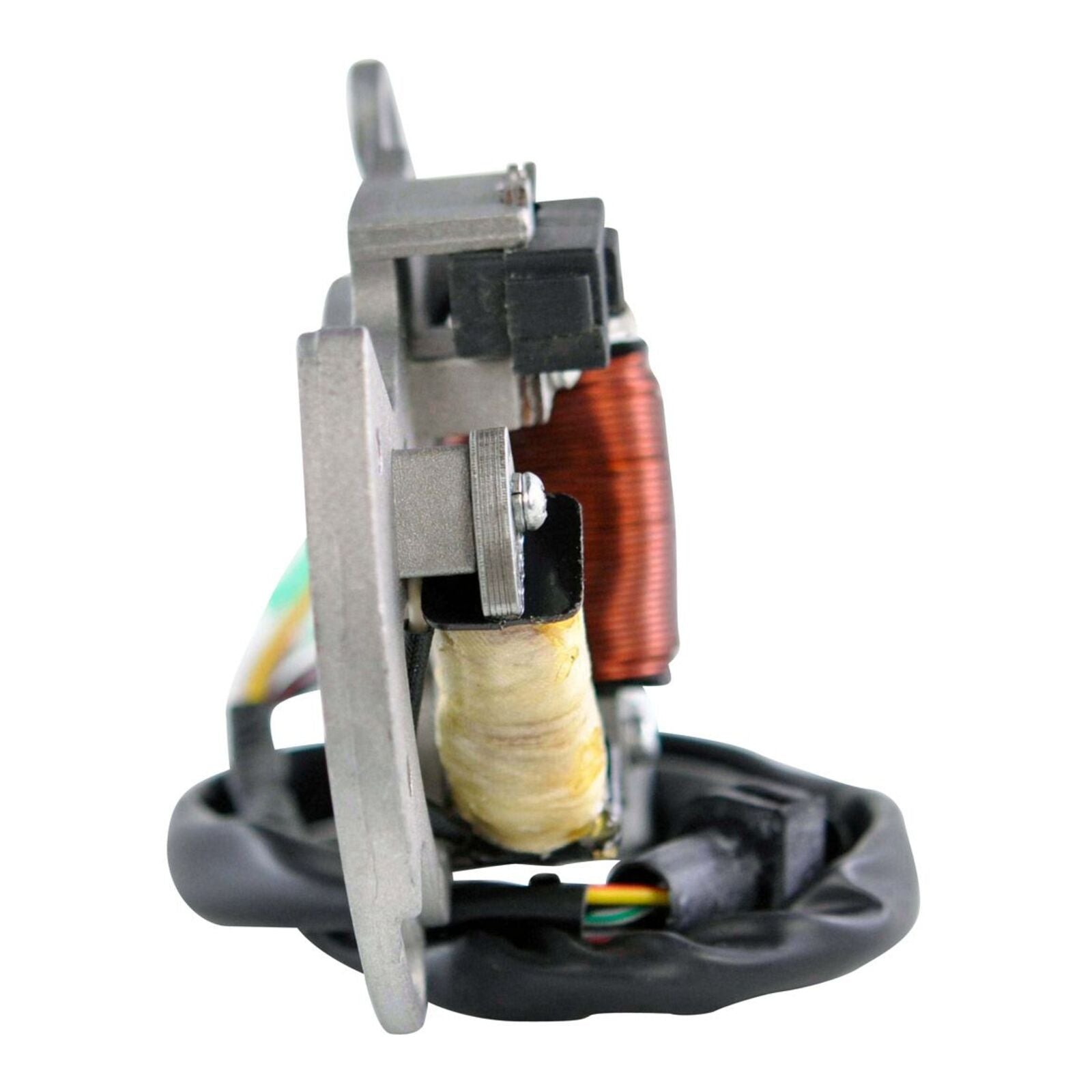

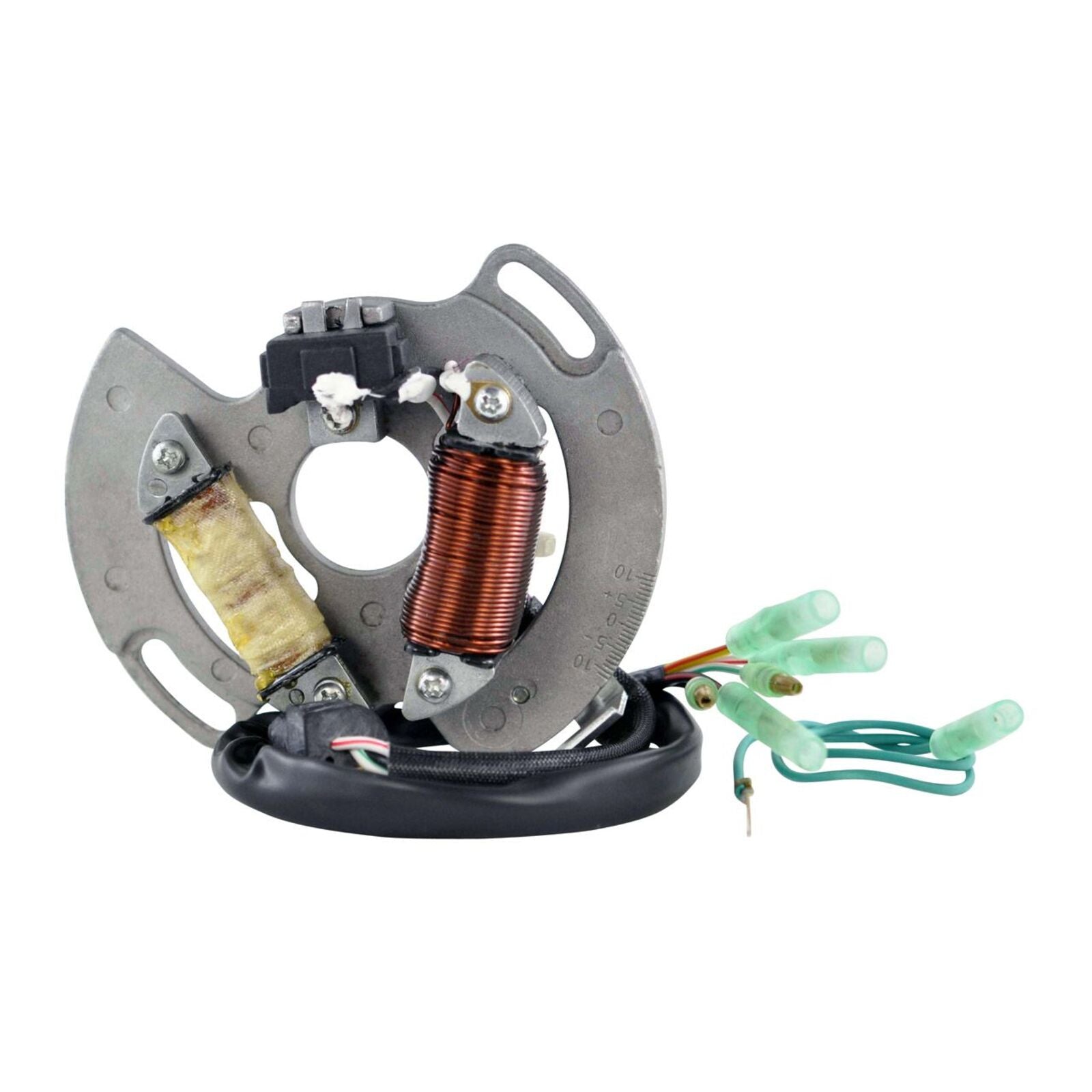

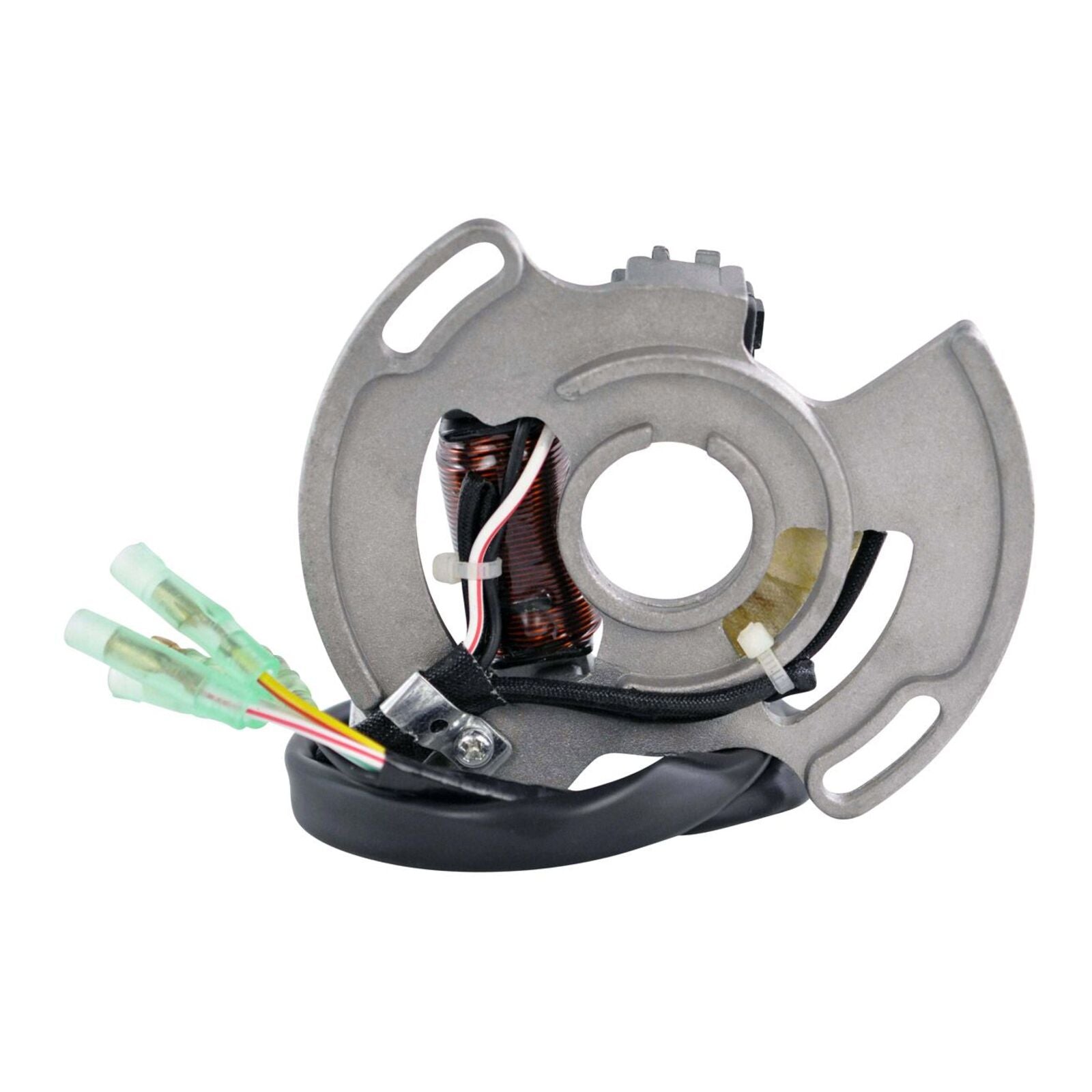

HIGH OUTPUT STATOR YAM YFS200

Direct replacement for your original unit.

• Plug-and-play direct fit easy installation
• Made with the highest grade lamination materials
• Highest grade copper windings resistant to 200 degrees Celsius
• 75 watts output for brighter light

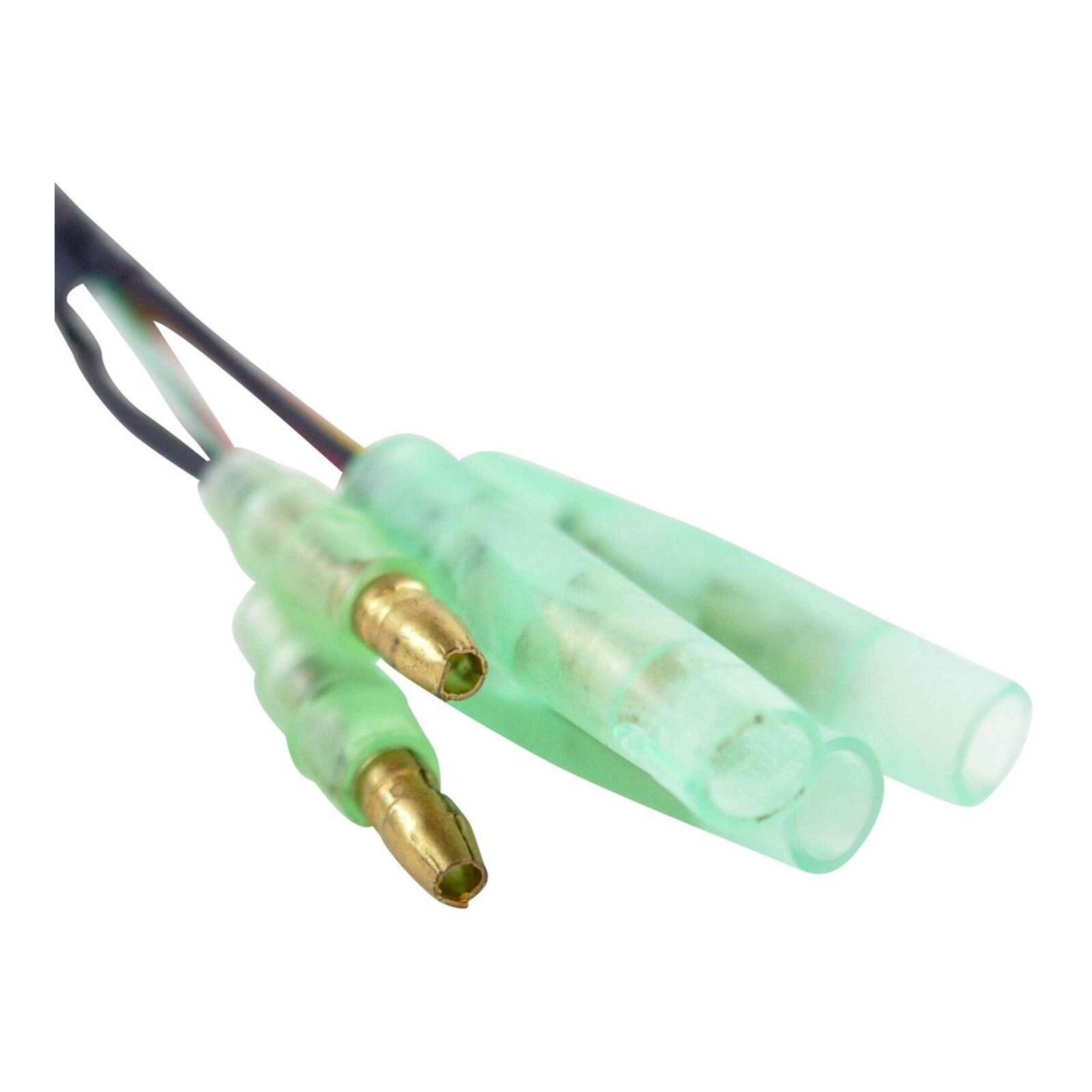

• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included
• All products shipped are tested

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 120 mm
• Thickness: 15 mm
• Length of wires stator to grommet: 80 mm
• Length of wires grommet to plug: 380 mm
• Length of pickup coil's wire to grommet: 100 mm

Other Specifications:

• Number of wires: 5
• Number of plugs: 5
• Number of pins: 5

Wire to Wire Resistance:

• Alternator: Yellow/Red to Black = 0.4 ohms +/-20%
• Pickup: White/Red to Black = 20 ohms +/-20%
• Source: Black/Red to Green/White = 280 ohms +/-20%
