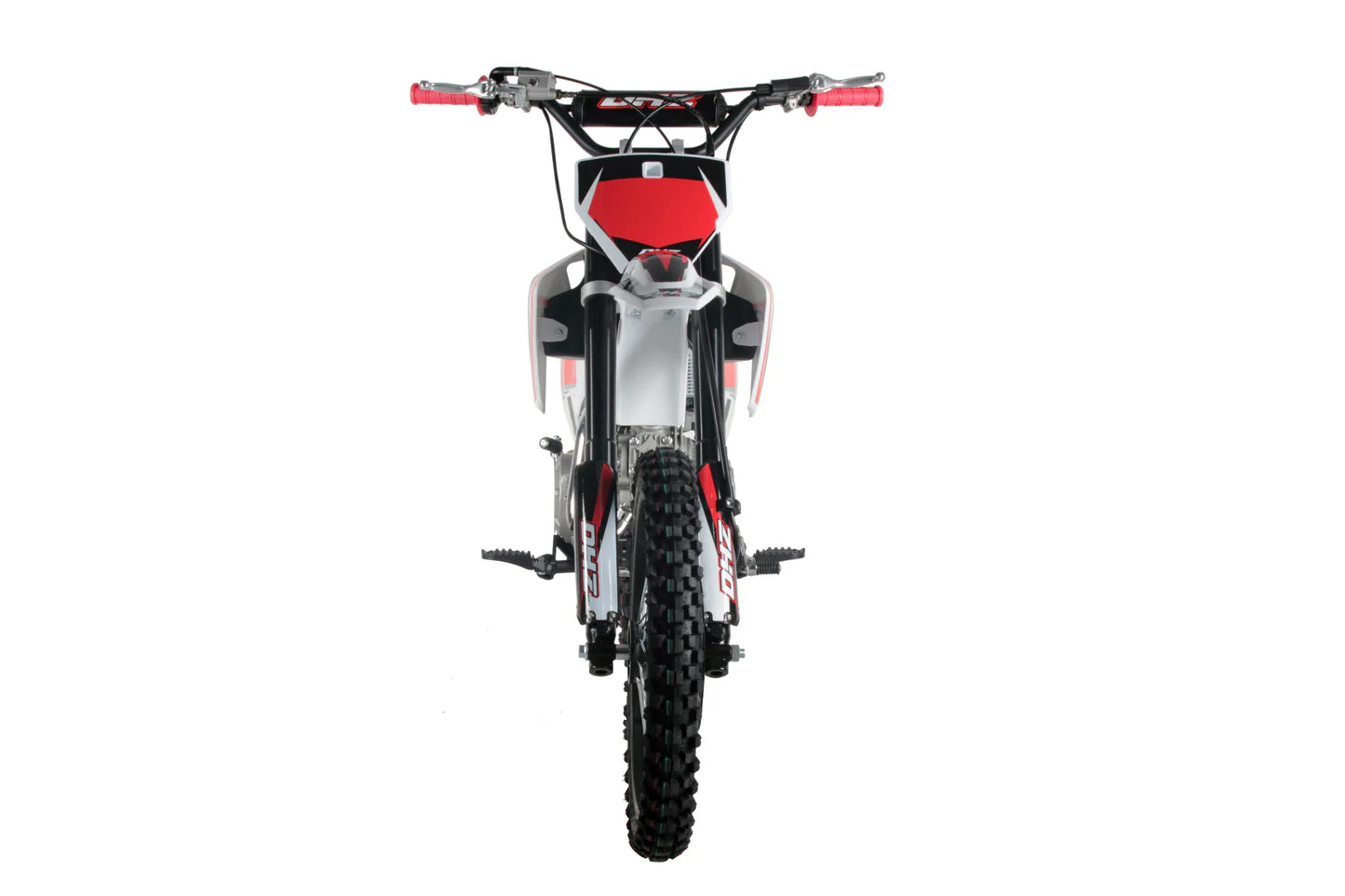

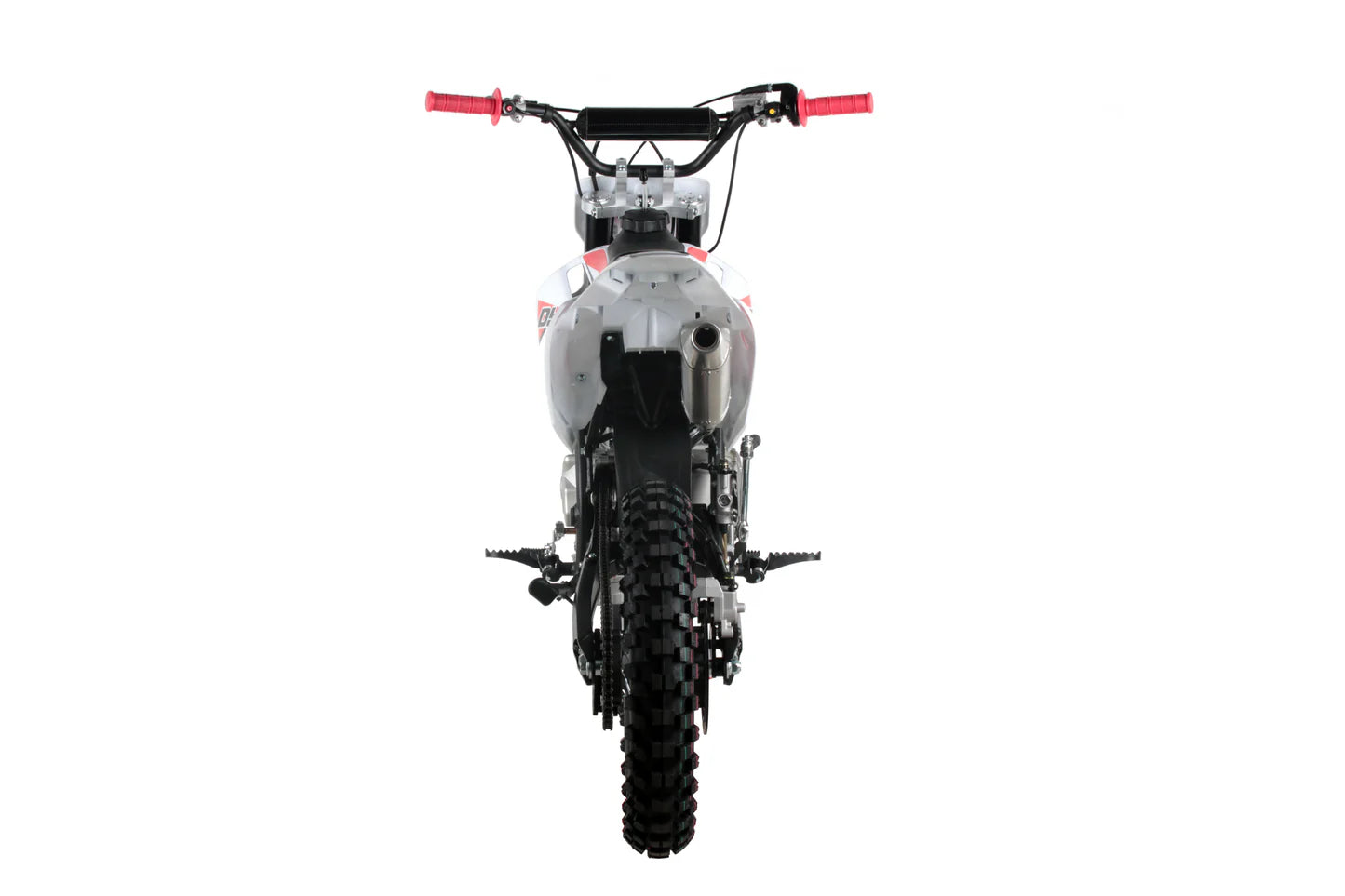

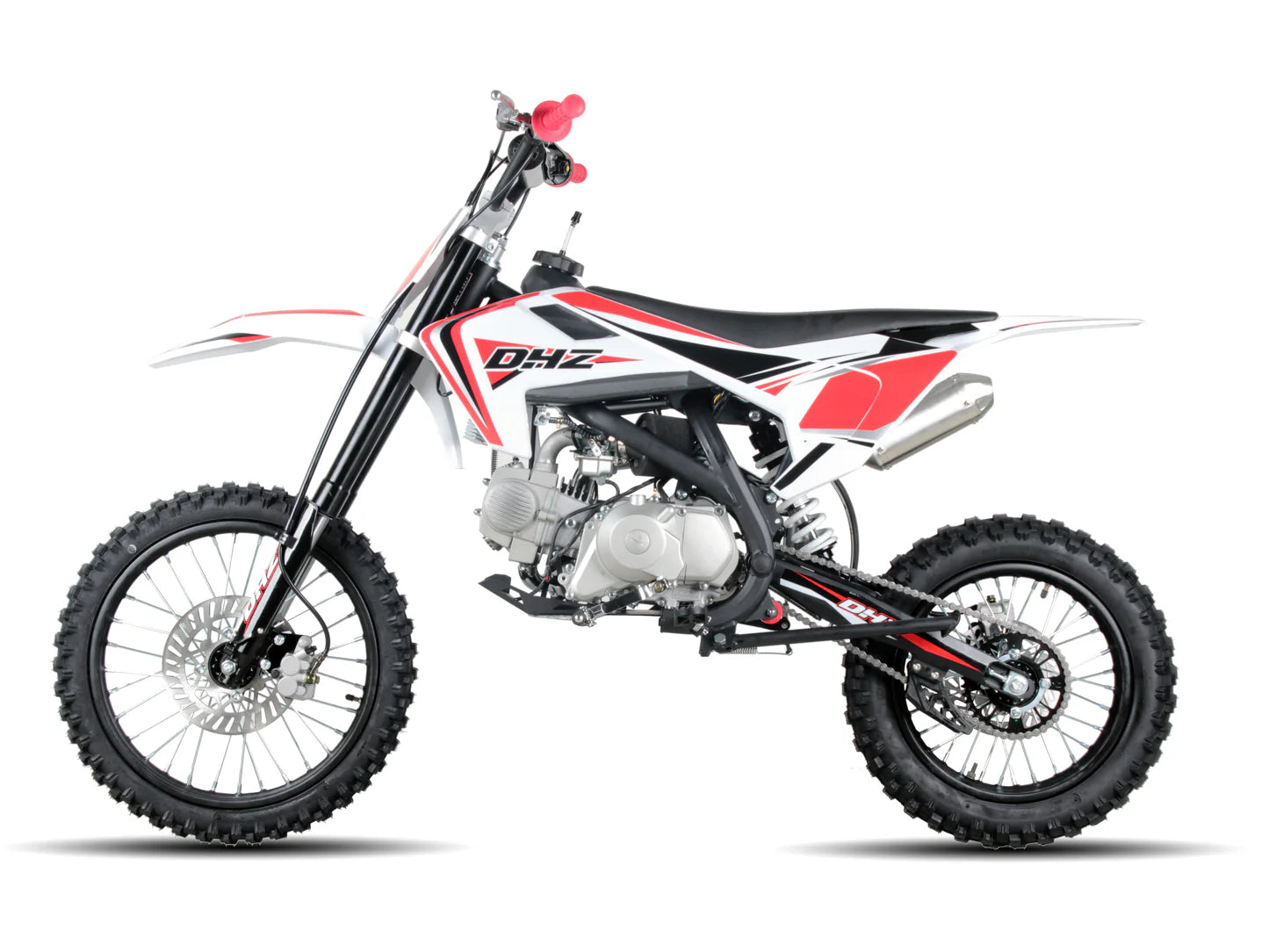

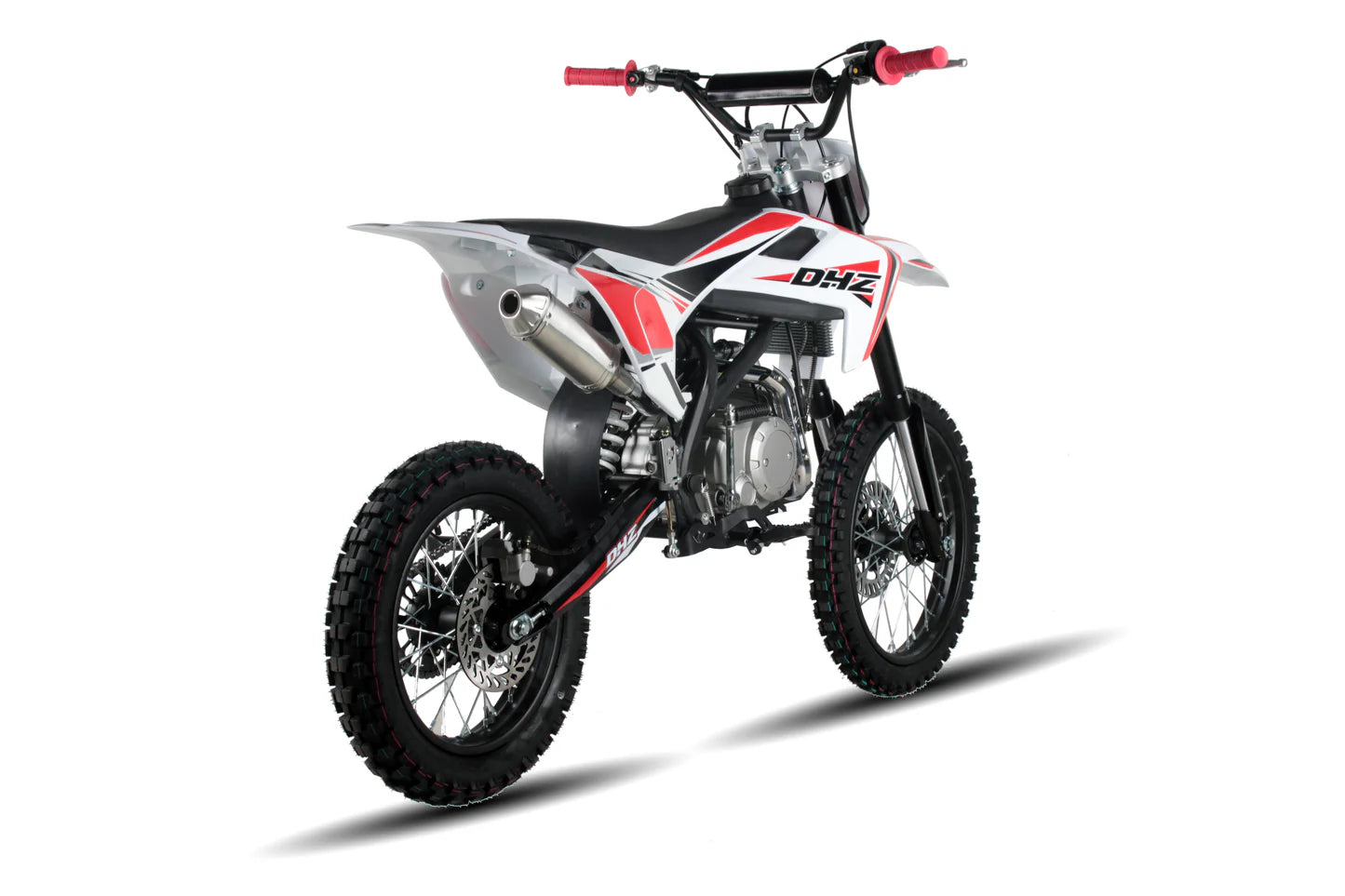

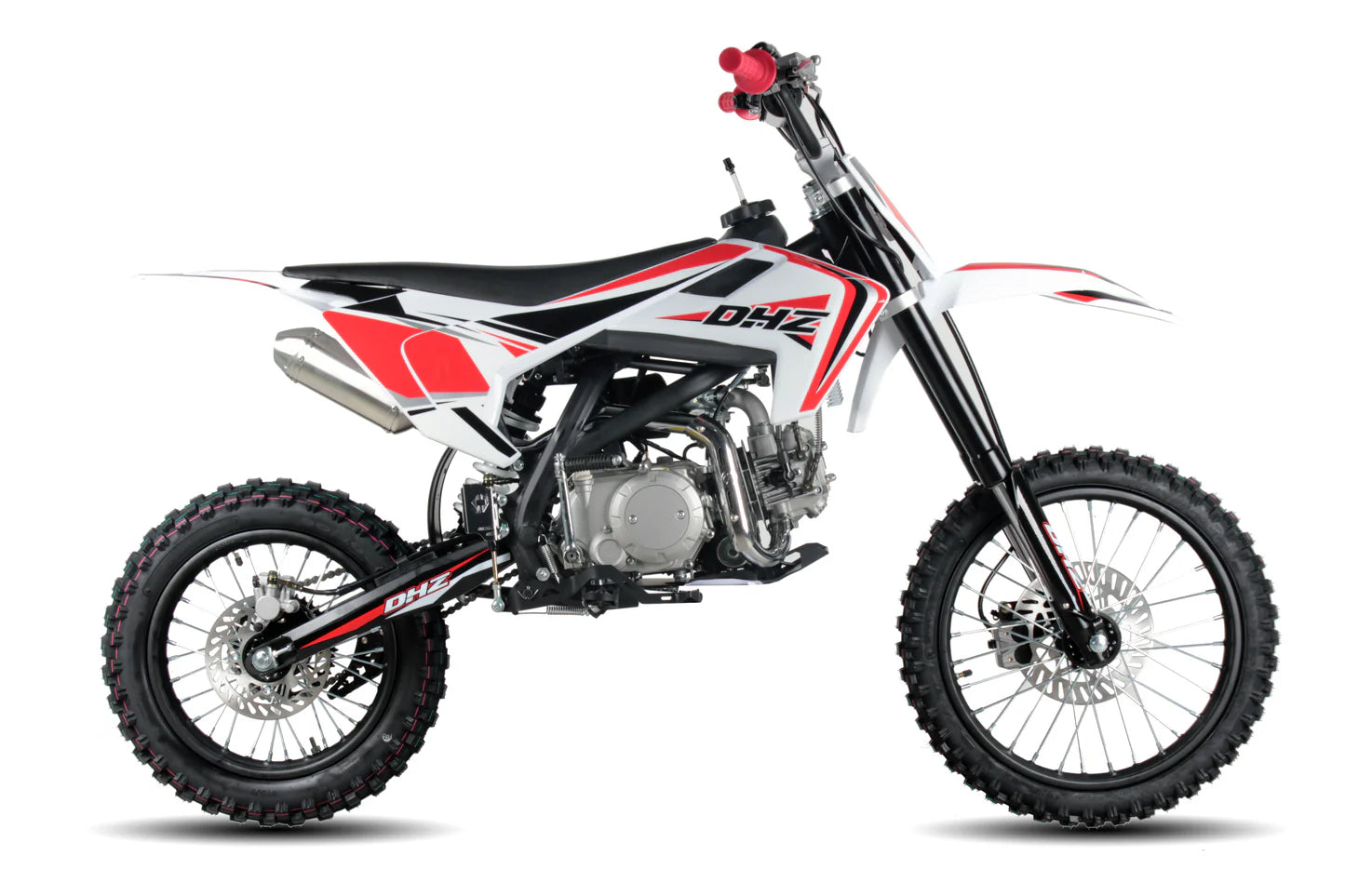

DHZ OUTLAW150EL, Manual, 17" Front / 14" Rear Wheel, 150cc Off-Road Dirt Bike
DHZ OUTLAW150EL, Manual, 17" Front / 14" Rear Wheel, 150cc Off-Road Dirt Bike
No reviews
PART No. SKU:DHZ150
Regular price
$2,050.00
Regular price
Sale price
$2,050.00
Unit price
/
per
GST included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DHZ OUTLAW150EL Manual is built to dominate off-road trails, offering riders power and precision with every ride. Featuring a 150cc YX engine and manual transmission, this bike provides the perfect balance of control and performance for serious off-road enthusiasts.
✅ 150cc YX Engine – Powerful & responsive
✅ 4-Speed Manual Transmission – Total rider control
✅ 17" Front & 14" Rear Wheels – Built for rugged terrain
✅ Hydraulic Disc Brakes – Reliable stopping power
✅ Inverted Suspension – Smooth, controlled rides
ENGINE SPECIFICATION |
|
| Engine Brand: | YX (YINXIANG) |
| Engine Model: | 1P56FMJ |
| Engine Type: | 4 Stroke - Single Cylinder - Oil Cool - Horizontal |
| Cooling System: | Oil Cool |
| Compression: | 8.8:1 |
| Bore/Stroke: | 56mm x 57mm |
| Maximum Output KW/ Rotating Speed: | 6.8kw / 7500rpm |
| Maximum Power / Rotating Speed: | 9.7n.m / 5500rpm |
| Front/Rear Sprocket Tooth Count: | 15/41T 420pitch |
| Starting System: | Electric Start / Kick Start |
| Clutch Type: | Multi Wet Clutch Plate |
| Transmission: | 4 Speed Manual - N1234 (4UP), Start in N Gear |
| Gear Ratio: | Primary Reduction: 3.882 |
| Carburettor: | PZ27 Carburettor |
| Air Filter: | 42mm Air Filter |
| Intake: | YX-02 intake |
| Ignition: | CDI |
| Fuel Type: | High Octane Unleaded Fuel (93 or higher) |
| Engine Oil Grade / Capacity: | 10W/40 Mineral 4 Stroke Engine Oil / 900ml |
| Magneto Type: | Full-wave alternating current |
| Displacement: | 150cc |
| Final Drive: | SF#420 Chain |
| Spark Plug: | A7TC Plug |
MATERIAL |
|
| Frame: | K3 Irregular Tube Beam |
| Plastic Kit: | Red / White |
| Sticker: | Red DHZ Sticker Kit |
| Kick Starter: | Heavy Duty Kick Starter |
| Gear Shifter: | Standard Gear Shifter |
| Fuel Tank: | Heavy-Duty 4.5L Fuel Tank, with Plastic Petrol Cap |
| Chain Roller: | Heavy Duty Nylon Chain Roller |
| Chain Guide: | Black Aluminium Shell Nylon Chain Guide |
| Chain Adjuster: | Galvanised Steel Chain Adjuster |
| Foot Peg: | Steel footpeg |
| Throttle: | Standard Throttle Assembly |
| Levers: | Alloy Fold Back Brake and Clutch Lever |
| Exhaust: | Chromium-plated iron exhaust pipe, Stainless Steel Diamond Muffler |
| Handlebar: | Heavy Duty Steel Tall Handlebar |
| Handlebar Grip: | Soft Grip |
| Triple Clamp: | Forged Triple Clamp |
| Seat: | Black Foam Seat |
WHEELS AND TYRES |
|
| Front Tyre: | 70/100-17 Knobby Tyre |
| Front Wheel: | 1.6-17 Black Steel Rim with Heavy Duty Spokes & Alloy Hub Assembly, 15mm Axle |
| Front Rim Lock: | No |
| Rear Tyre: | 90/100-14 Knobby Tyre |
| Rear Wheel: | 1.85-14 Black Steel Rim with Heavy Duty Spokes & Alloy Hub Assembly, 15mm Axle |
| Front Rim Lock: | Yes |
BRAKE SYSTEM AND SUSPENSION |
|
| Front Suspension : | Inverted Front Forks, Non-Adjustable |
| Front Brakes : | Front Hydraulic Brake with Disc Rotor, Twin Piston Caliper |
| Front Brake Disk | 220mm |
| Rear Suspension: | Hydraulic Rear Shock, Non-Adjustable |
| Swing Arm: | Heavy Duty Single Swing Arm |
| Linkage: | No |
| Rear Brakes: | Rear Hydraulic Brake with Disc Rotor, Single Piston Caliper |
| Rear Brake Disk: | 190mm |
| Brake Pads: | High-Performance Copper Brake Pads |
CAPACITY |
|
| Fuel Capacity: | 4.5L |
| Engine Oil Capacity: | 800ml |
| Tube Diameter of Muffler: | 32mm |
DIMENSION |
|
| Handle Bar Height: | 1120mm |
| Seat Height: | 820mm |
| Ground Clearance: | 320mm |
| Wheel Base: | 1235mm |
| Overall Length / Width / Height: | 1785mm (Length) x 740mm (Width) x 1120mm (Height) |
| G.W. / N.W.: | 88.5kgs / 78kgs |
| Package Size: | 1420mm (Length) x 425mm (Width) x 650 mm (Height) |
