Crossfire X300 ATV
Crossfire X300 ATV
The Crossfire X300 is an addition to our growing fleet of ATVS.
When we design each of our machines there is a purpose and a reason for existence. We have in mind the size and type of use our customers will put our machines through.
The X300 is a farm spec machine with Low Range and it is the first in range to go to shaft drive differential drive. The system is sealed and does not require daily maintenance like chain drive systems do. The Crossfire X300 has a larger and more comfortable seating position with a padded seat .
The torque is dramatically increased and the X300 now has a larger clutch unit.
With water-cooling and large radiator specified for Australia conditions we believe this hard working quad will work as hard in the Kimberly as it does in Toowoomba.
To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard the X300 comes with a Quad Bar CPD device and has been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees X300 exceeds the minimum lateral stability tilt angle test with a result of 32.4 degrees.
With the introduction of the Quad bike safety standard, all Crossfire General use machines come standard with the Quad Bar Flexi inside every carton. Your dealer will fit this to the machine before pick up. It mandatory for all our dealers to fit this CPD safety device in order to improve safety and comply with the Quad bike safety standard.
X300 Standard Features:
- Liquid cooled
- Shaft Drive 2×4
- Aluminium Wheels
- Enclosed footboards
- Day time running lights

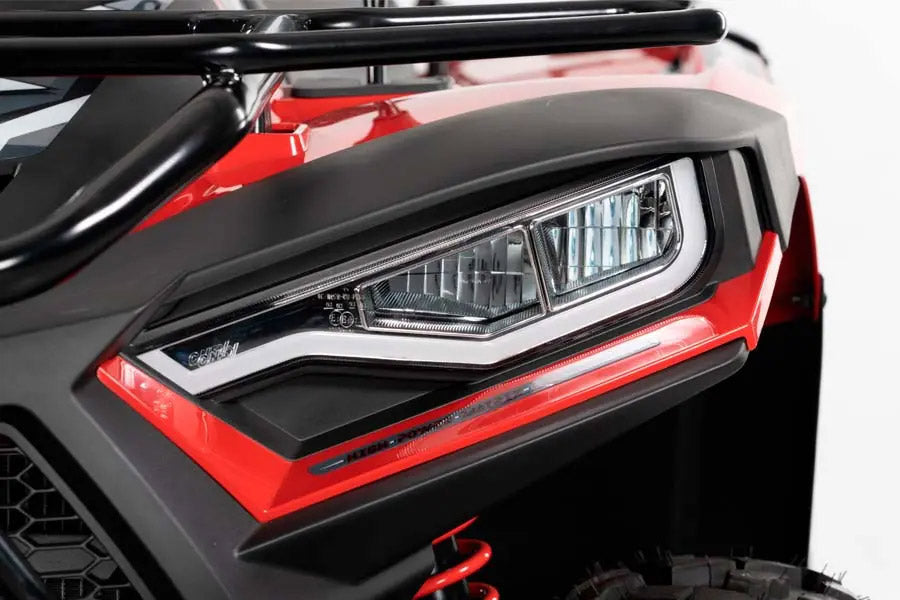

- LED Lighting
- Quadbar Fitted
Specifications | |
---|---|
Engine | LH173M, Single cylinder, 4 stroke |
Power | 19HP |
Bore x Stroke | 72.5 × 66.8 mm |
Compression Ratio | 9.5:1 |
Fuel System | CARB |
Cooling | Water Cooled |
Start Type | Electric |
Transmission | Automatic L-H-N-R |
Drive | Rear Wheel Drive 2×4 |
Suspension / Brakes / Tyres | |
---|---|
Suspension Front | McPherson independent suspension |
Suspension Rear | Swing arm |
Brakes Front | Disk brake Hand brake, Foot brake |
Brakes Rear | Disk brake Hand brake, Foot brake |
Tyres Front | AT24×8-12 |
Tyres Rear | AT24×11-10 |
Dimensions | |
---|---|
Product Dimensions | 2100mm × 1140mm × 1270mm |
Ground Clearance | 170 mm |
Wheelbase | 1215 mm |
Load Capacity | 129kg |
Dry Weight | 310 kg |
Fuel Capacity | 14 L |
Max Speed | >60 km/h |
Safety | |
---|---|
Safety | Using ATV with Passenger greatly increases risk of Rollover. Speed should be kept under 15 km/h. |
Options |
---|

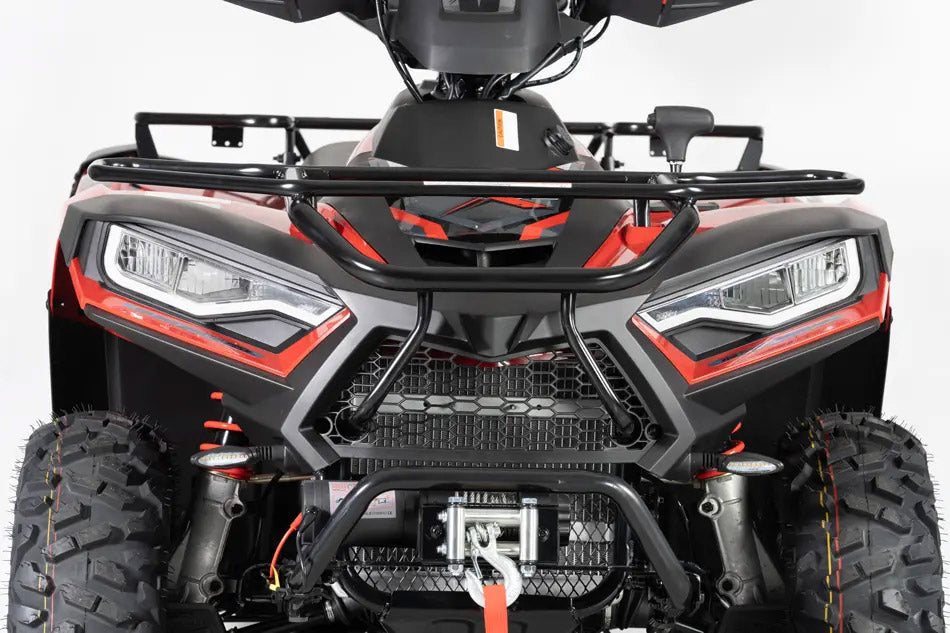

Winch: $399 |
Warranty | |
---|---|
12 months up to 24 months* | * If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services. |
