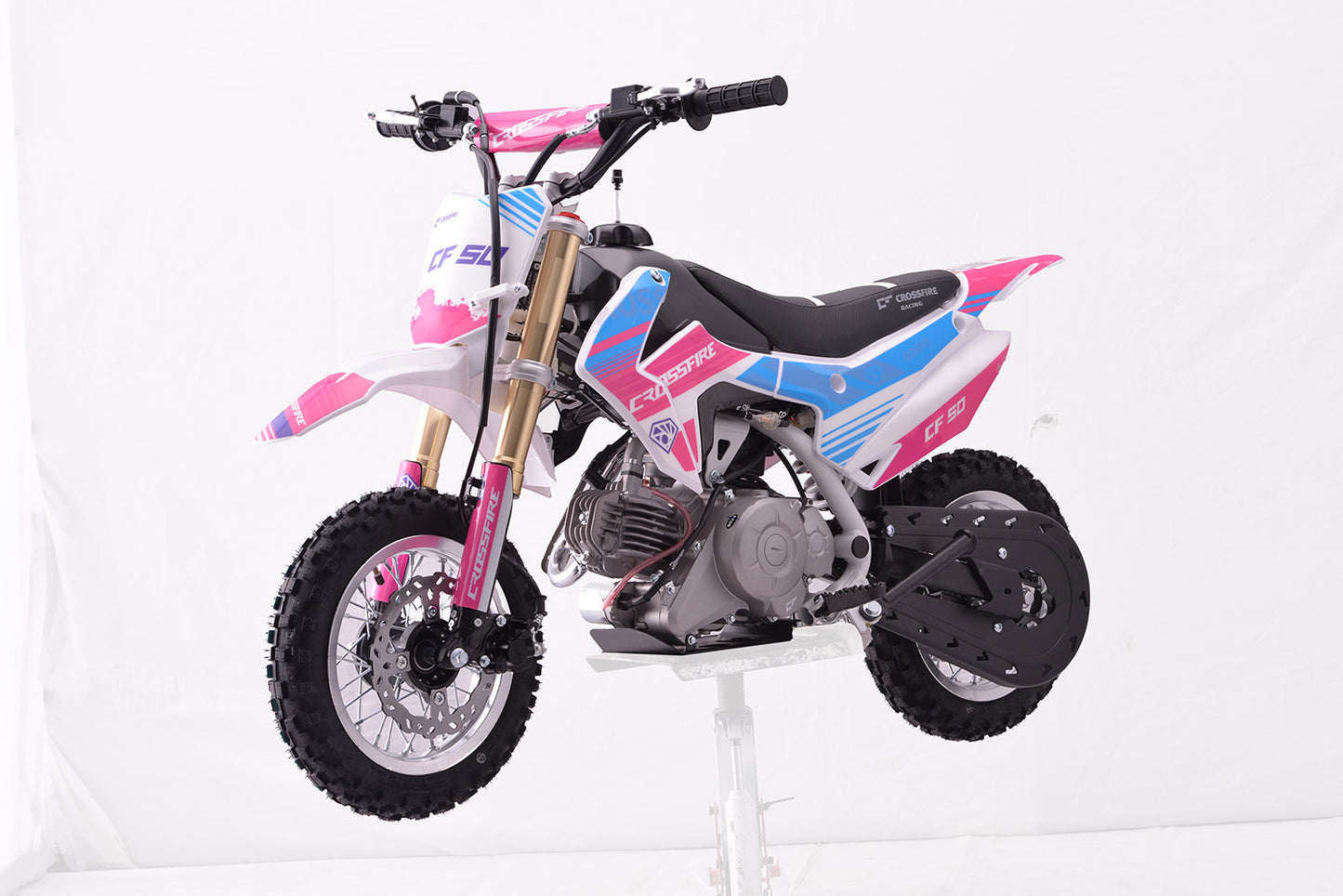

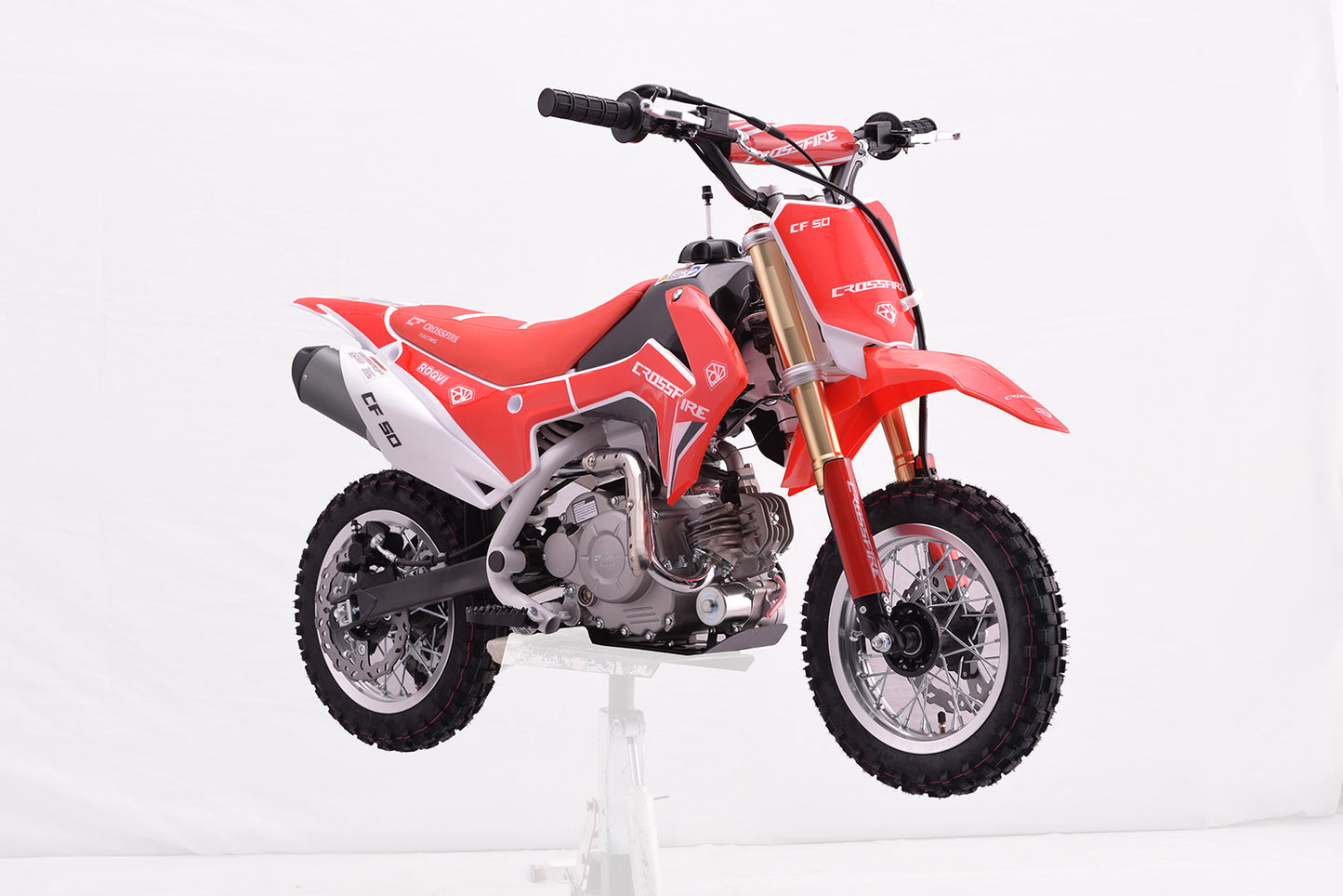

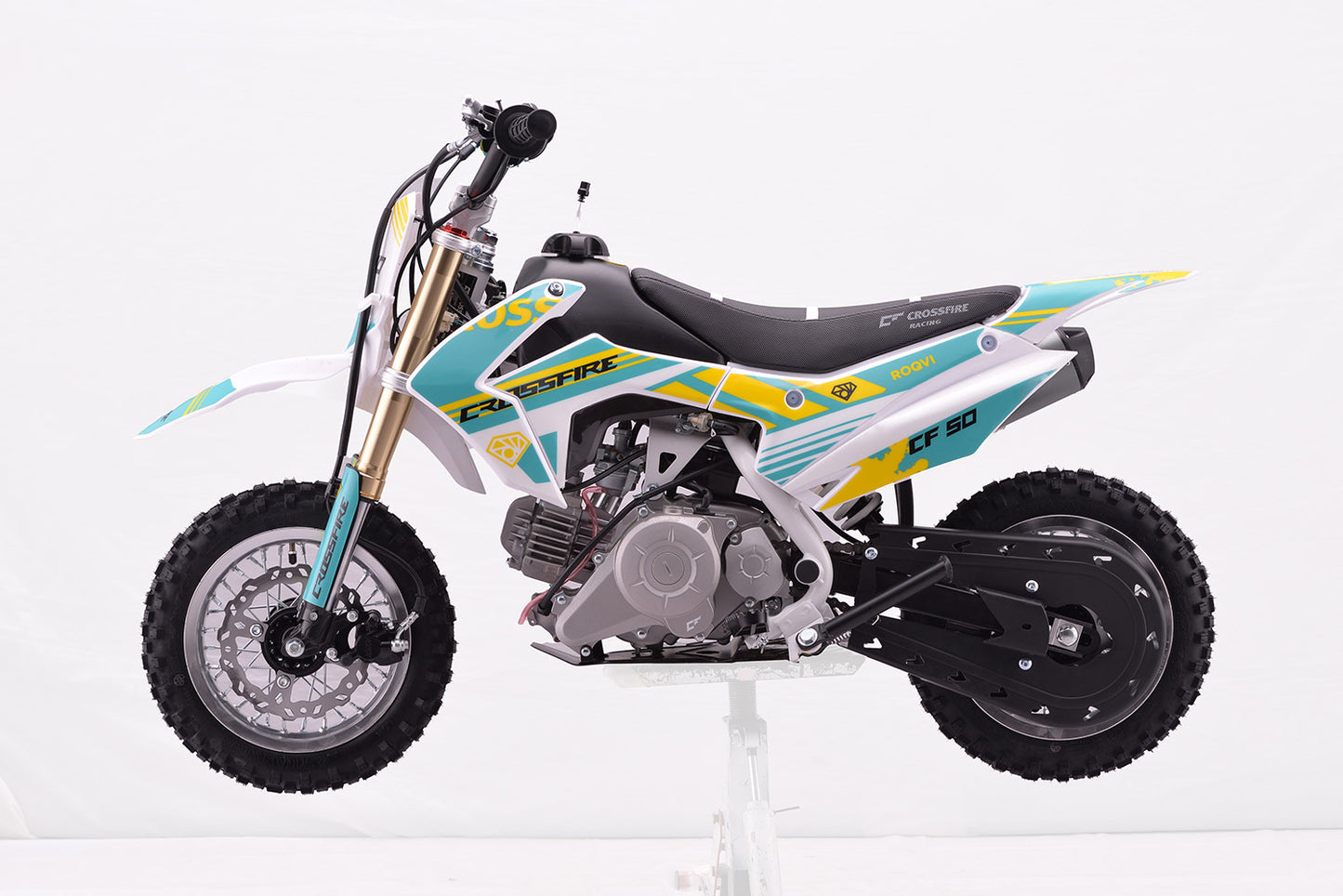

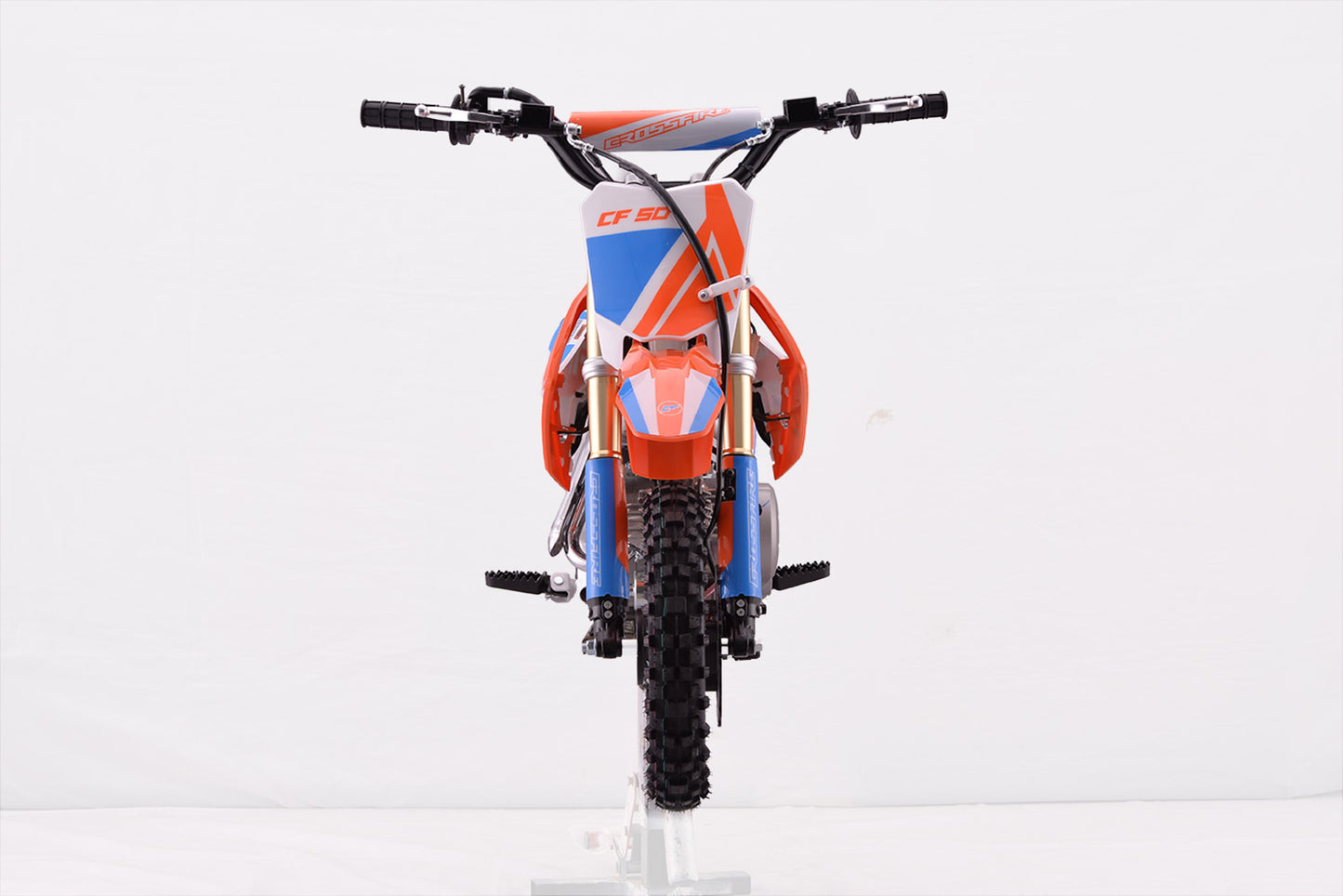

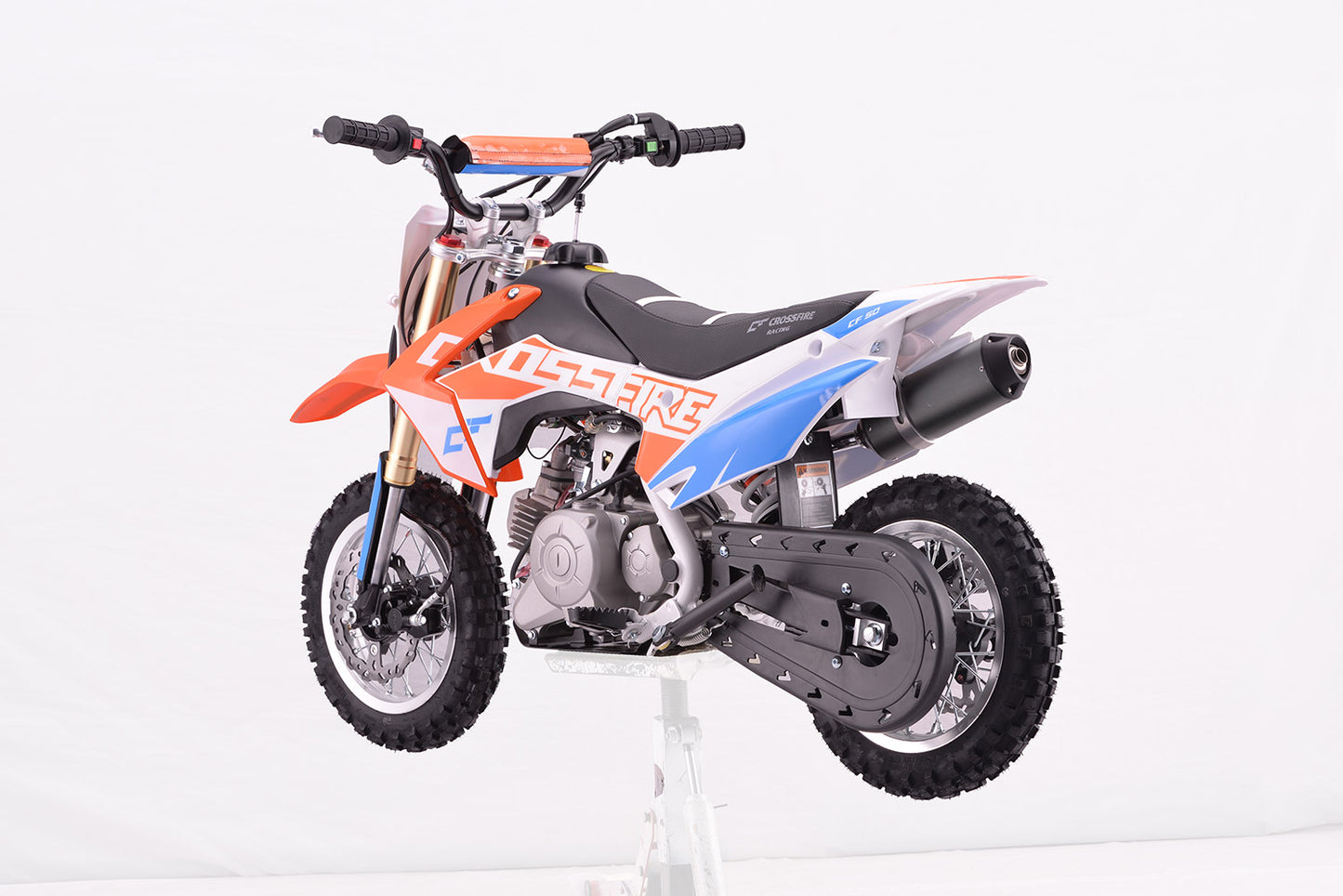

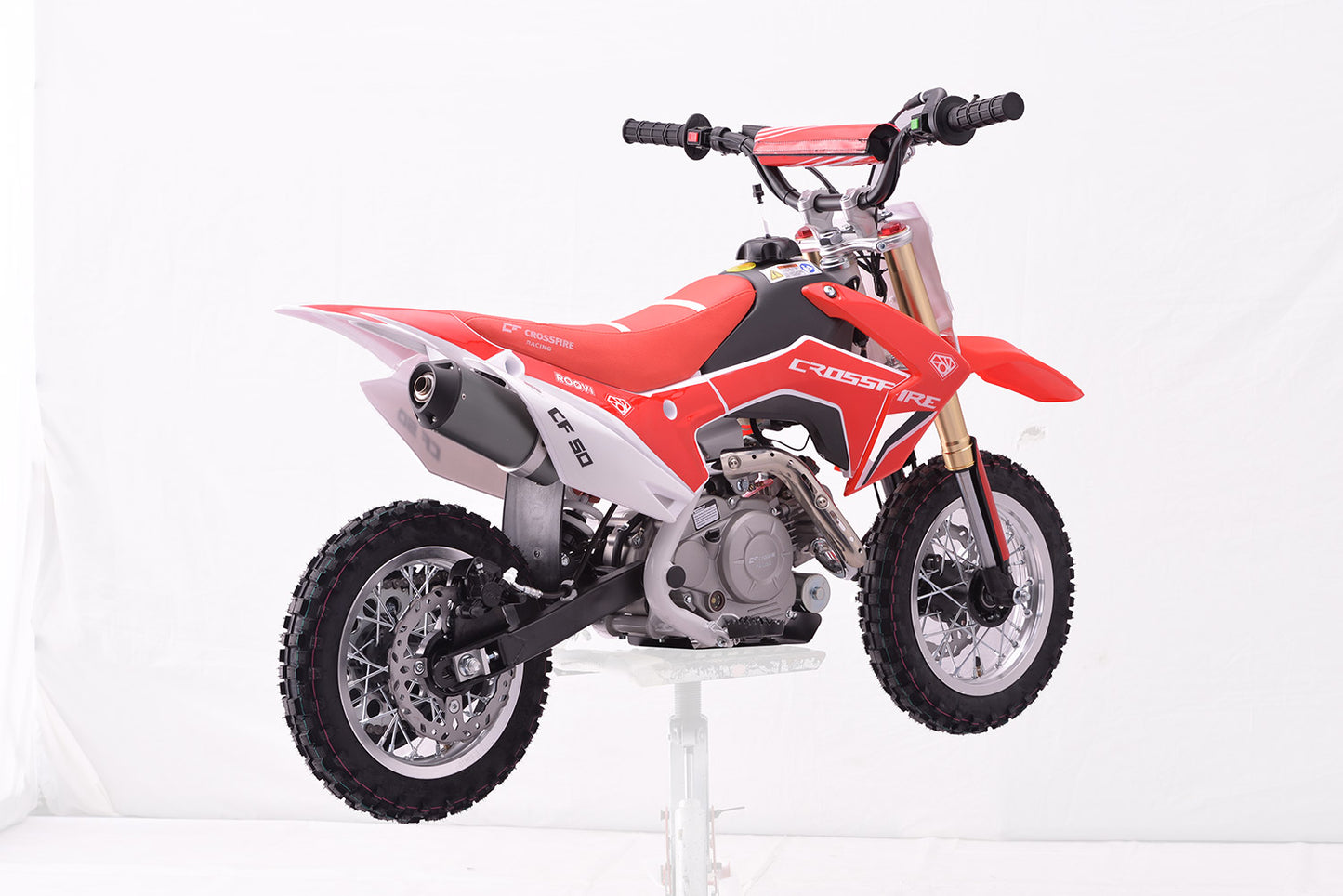

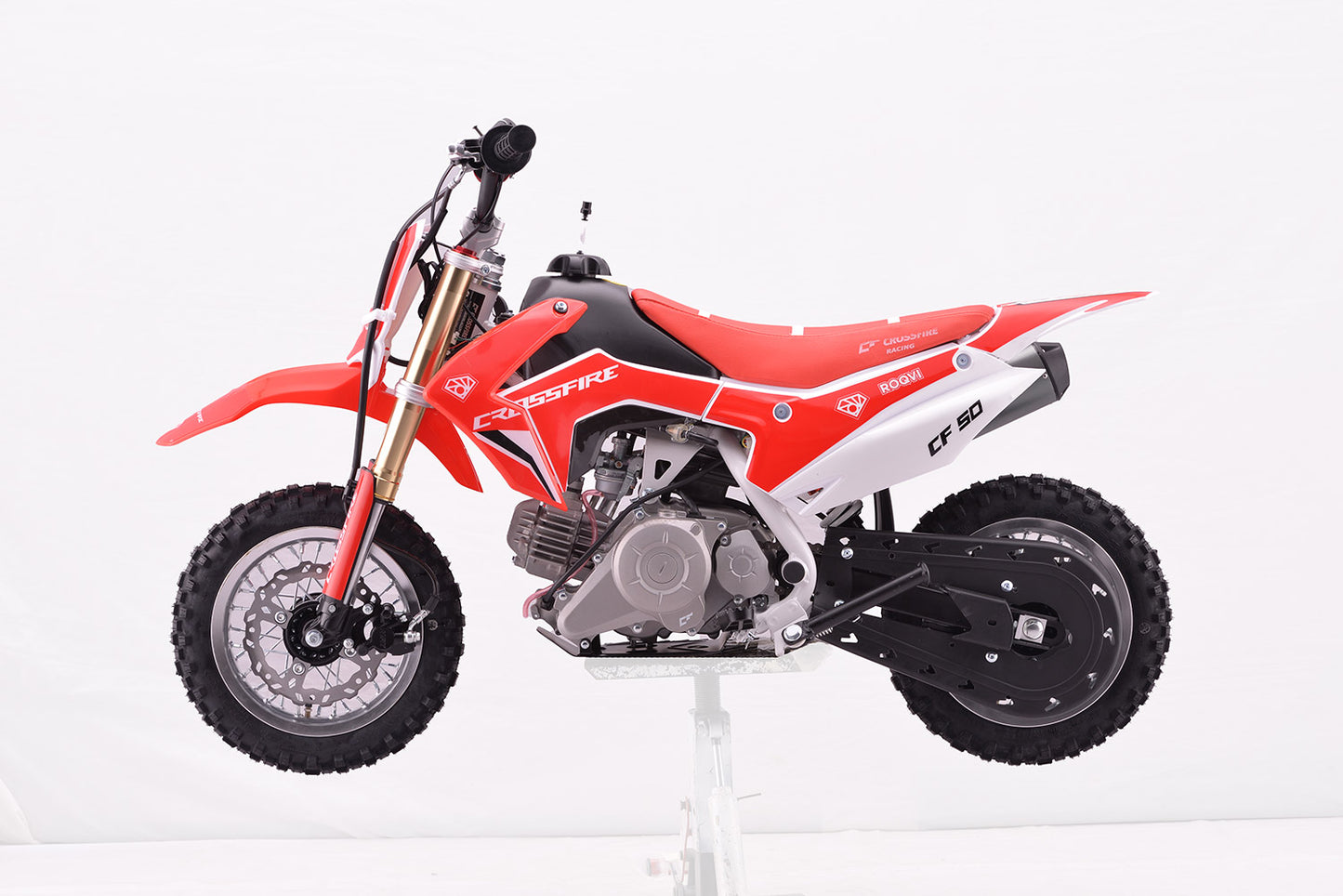

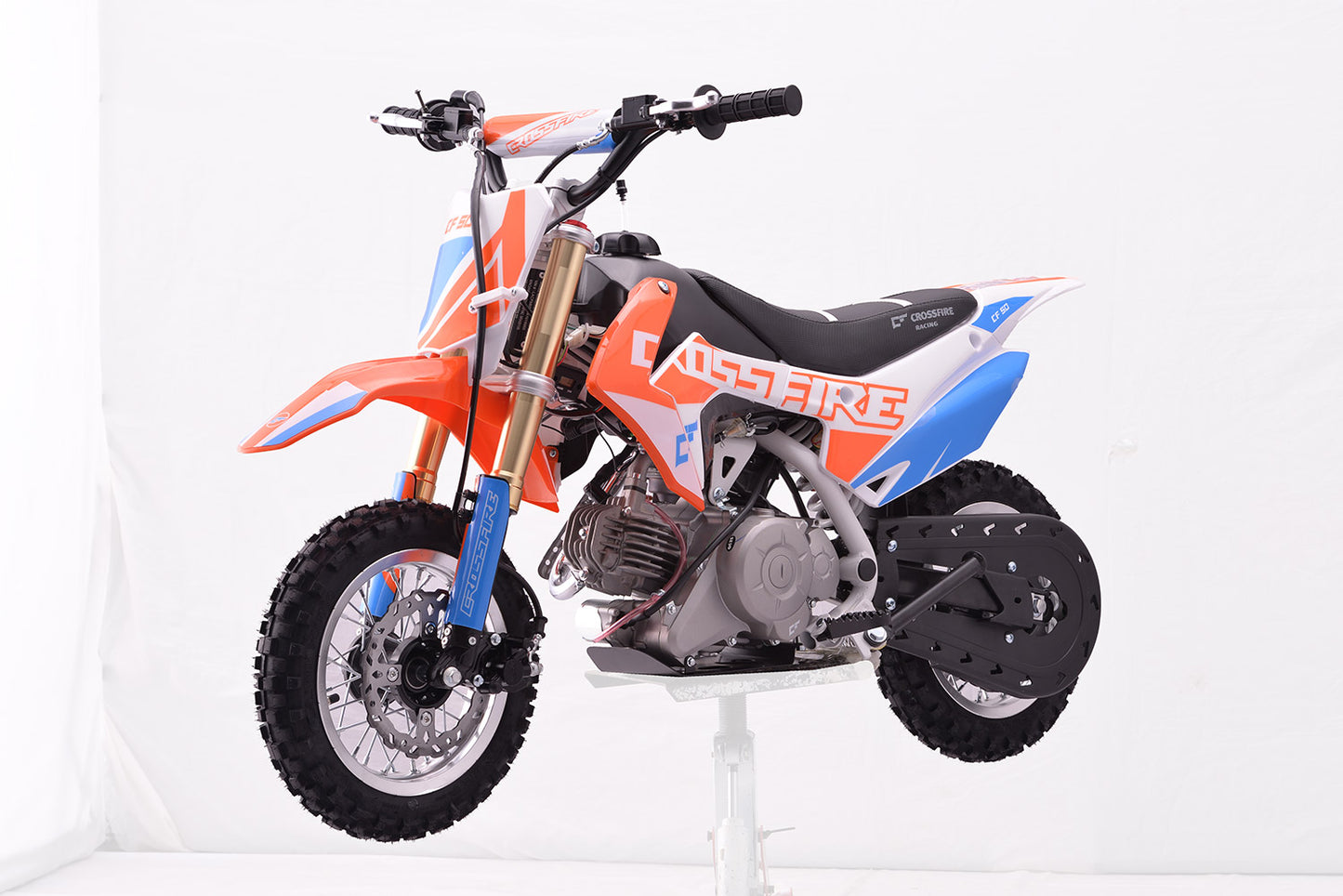

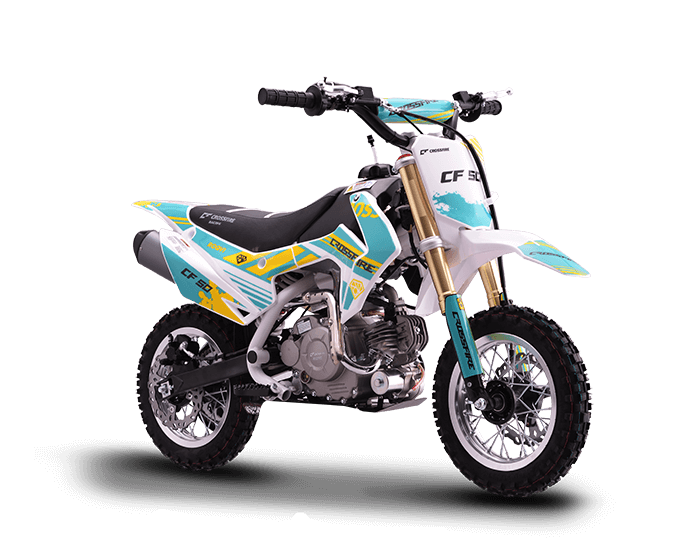

Crossfire CF50
Crossfire CF50
The Crossfire CF50 was engineered from the ground up with weight, height and handling in mind. For our smallest riders we have used the lightest materials. These include aluminium wheels and hubs, aluminium engine case and cylinder head and forged triple clamps and risers.
We were aiming for the lightest 4 stroke bike we can make. The result was a 46kg dry weight. This means the bike will be easier to handle easier to load and most importantly more manageable for the little champs riding them. This bike has been approved by Motorcycling Australia to compete in the 50cc division of club and inter-club racing competitions.
The centre mount battery for the electric start system is in the middle of the bike keeping weight distribution to closer to 50:50 more importantly starting the bike is just a matter of pushing the e-start button.
Although not a speed limiter, the throttle adjuster screw limits how much throttle is available, it’s a fantastic aid we recommend this setup done by your authorised dealer.
We optioned powerful hydraulic disc brakes as opposed to cable set up to increase stopping power with minimal effort. If you are in the market for a fun bike, mini bike or just a motorbike for children, be sure to checkout the Crossfire CF50 at your nearest Crossfire dealer.
Genuine Crossfire training wheels are available for the CF50. Please ask your local dealer for this riding aid.
CF50 Standard Features:
- Fully automatic
- Class leading 46kg dry net weight
- Air box for engine protection
- Electric start
- Aluminium wheels
- Forged triple clamps
Specifications | |
---|---|
Engine displacement | 50cc |
Engine type | Single cylinder 4-stroke |
Engine Cooling | Air cooled |
Bore x stroke | 44 x 37.4mm |
Compression ratio | 8.5:1 |
Power max | 5 HP @ 7500rpm |
Torque max | 3 Nm @ 4500rpm |
Fuel consumption | ≤ 450g/kwh |
Starting Modes | Electric |
Gearbox | Full automatic |
Ignition | CDI |
Carburettor | PZ14Q |
Sprocket (front / rear) | 420-10T / 420-43T |
Handlebars | Steel |
Triple clamp | Forged aluminium |
Frame | Backbone type |
Swingarm | Steel square tube |
Suspension front | 39/42- 550 mm |
Suspension rear | 240 mm, damped |
Rear adjustable? | No |
Brakes front | 190 mm disc |
Brakes rear | 190 mm disc |
Wheel rim front | Steel rim, 1.60-10 |
Wheel rim rear | Steel rim, 1.60-10 |
Tyre front | 2.5-10 |
Tyre rear | 2.5-10 |
Fuel tank capacity | 3 L |
Seat height | 570 mm |
Wheelbase | 920 mm |
Ground clearance | 170 mm |
Net weight | 46 kg |
Max load | 40kg |
Bike dimensions | 1290 x 680 x 840 mm |
Warranty | |
---|---|
6 months up to 12 months* | *If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to 250cc. Please make sure you have proof of services. |
