BUZZ BIKES - Fork

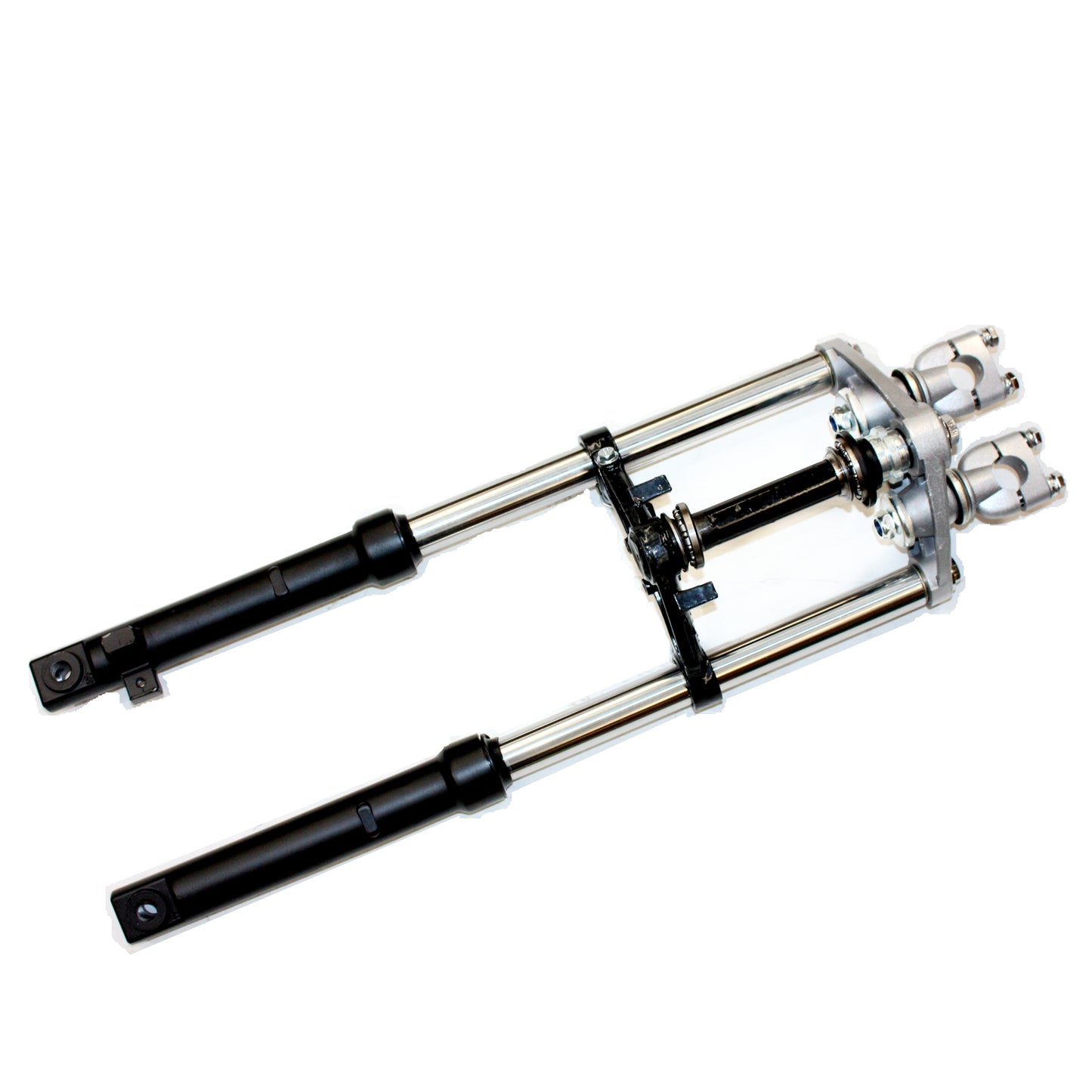

540mm Drum Brake Front Fork Triple Tree Clamp Bar Riser 50cc 110cc PIT Dirt Bike

540mm Drum Brake Front Fork Triple Tree Clamp Bar Riser 50cc 110cc PIT Dirt Bike

$113.55
$113.55
Sale Sold out
GST included. Shipping calculated at checkout.

SKU:PE20-A

Brand New 540mm Drum Brake Front Fork Triple Clamp Bar Riser 50cc 70cc 110cc PIT Dirt Bike

TOTAL LENGTH (from leg top to wheel axle centre) approx 540mm
DISTANCE BETWEEN UPPER AND LOWER CLAMP approx 145mm
DIAMETER OF FORK LEG FOR THE CLAMP approx 28mm
DIAMETER OF THE HEAD STEM BOLT approx 23.35mm
DIAMETER OF THE AXLE HOLE approx 12mm
INNER DIAMETER OF THE BAR RISER approx 22mm
