BUZZ BIKES - Rear Wheel Hub

24T Teeth Spline 4 Stud Rear Axle Wheel Hub 150cc 250cc Quad Dirt Bike ATV Buggy

24T Teeth Spline 4 Stud Rear Axle Wheel Hub 150cc 250cc Quad Dirt Bike ATV Buggy

$33.62
$33.62
Sale Sold out
GST included. Shipping calculated at checkout.

SKU:N104__S1B

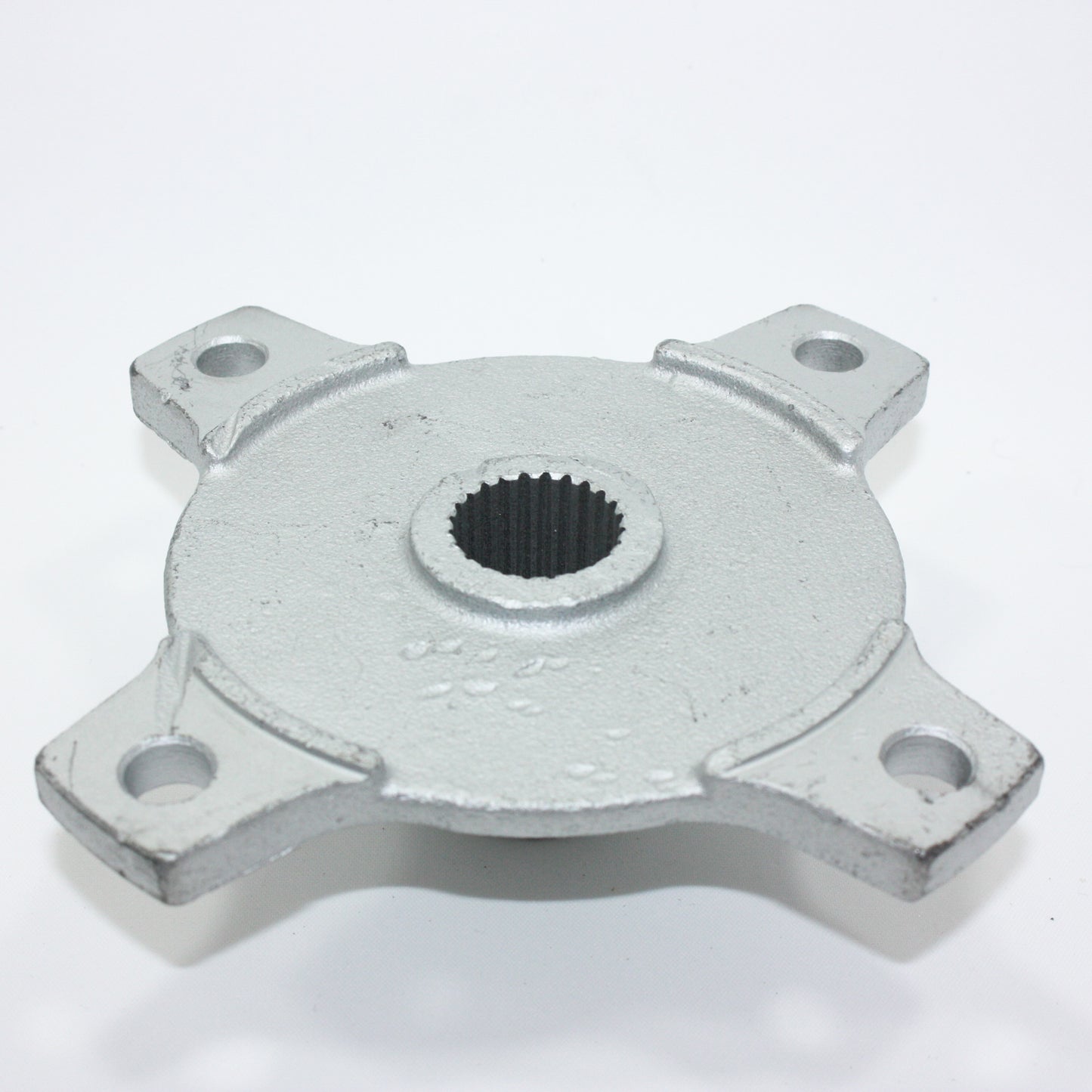

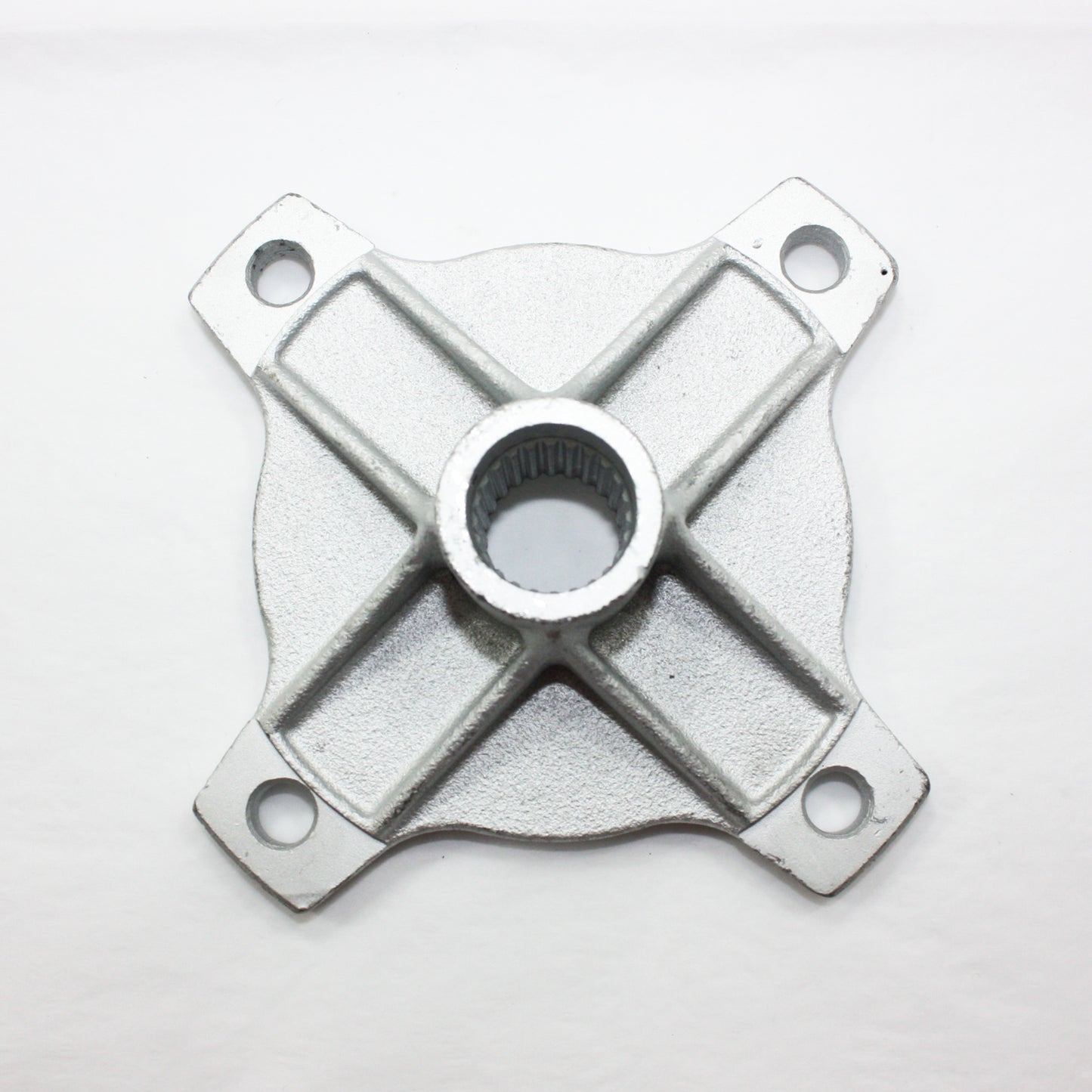

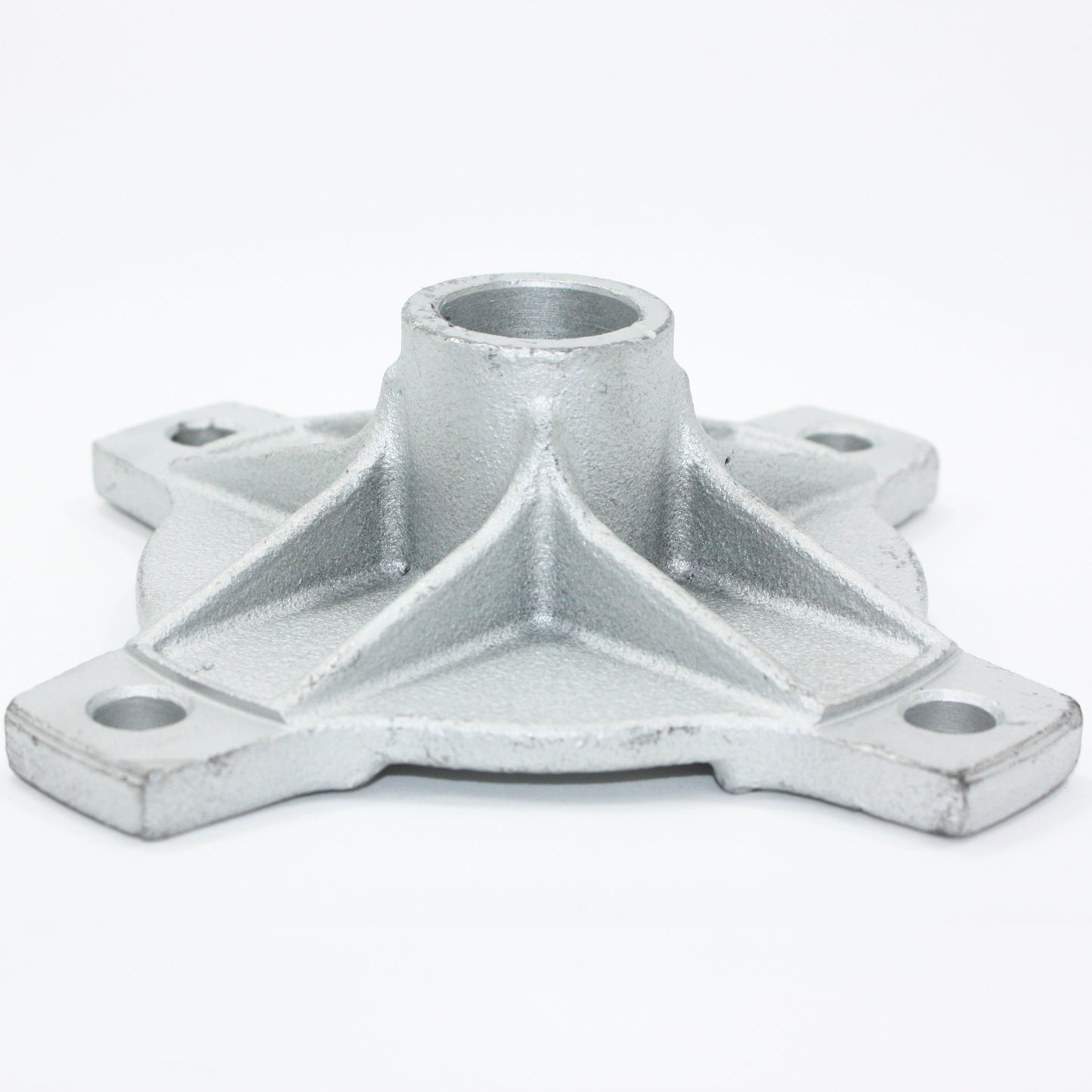

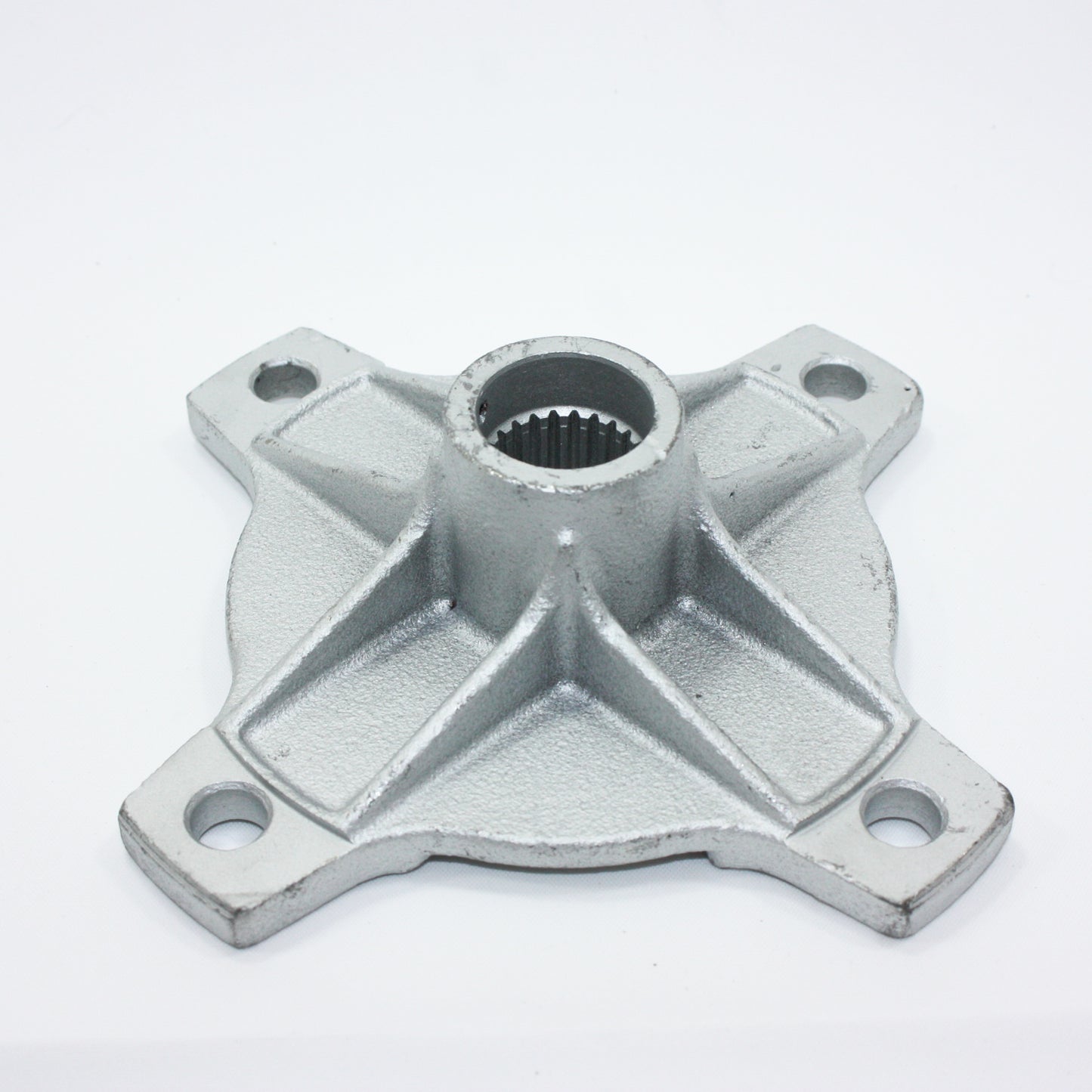

Brand New 24 Tooth Spline 4 Stud Wheel Rim Rear Axle Hub for 150cc 250cc Quad Dirt Bike ATV Dune Buggy Go Kart

SPLINE 24 Teeth
DIAMETER OF THE AXLE HOLE (BETWEEN TOP OF SPLINE) approx 23.34mm
DIAMETER OF THE AXLE HOLE (BETWEEN BOTTOM OF SPLINE) approx 24.96mm
DISTANCE OF NEAREST MOUNTING HOLE (CENTRE HOLE TO CENTRE HOLE) approx 95.95mm
DISTANCE OF CROSSING MOUNTING HOLE (CENTRE HOLE TO CENTRE HOLE) approx 135.25mm
DIAMETER OF HOLE (TAPERED WITHOUT SPLINE) approx 29mm
