BUZZ BIKES - Quad Bike Axle

1140mm 35mm Rear Axle Assembly Sprocket Brake Rotor Hub Dirt Quad Bike ATV Buggy

1140mm 35mm Rear Axle Assembly Sprocket Brake Rotor Hub Dirt Quad Bike ATV Buggy

$171.41
$171.41
Sale Sold out
GST included. Shipping calculated at checkout.

SKU:PA15-C

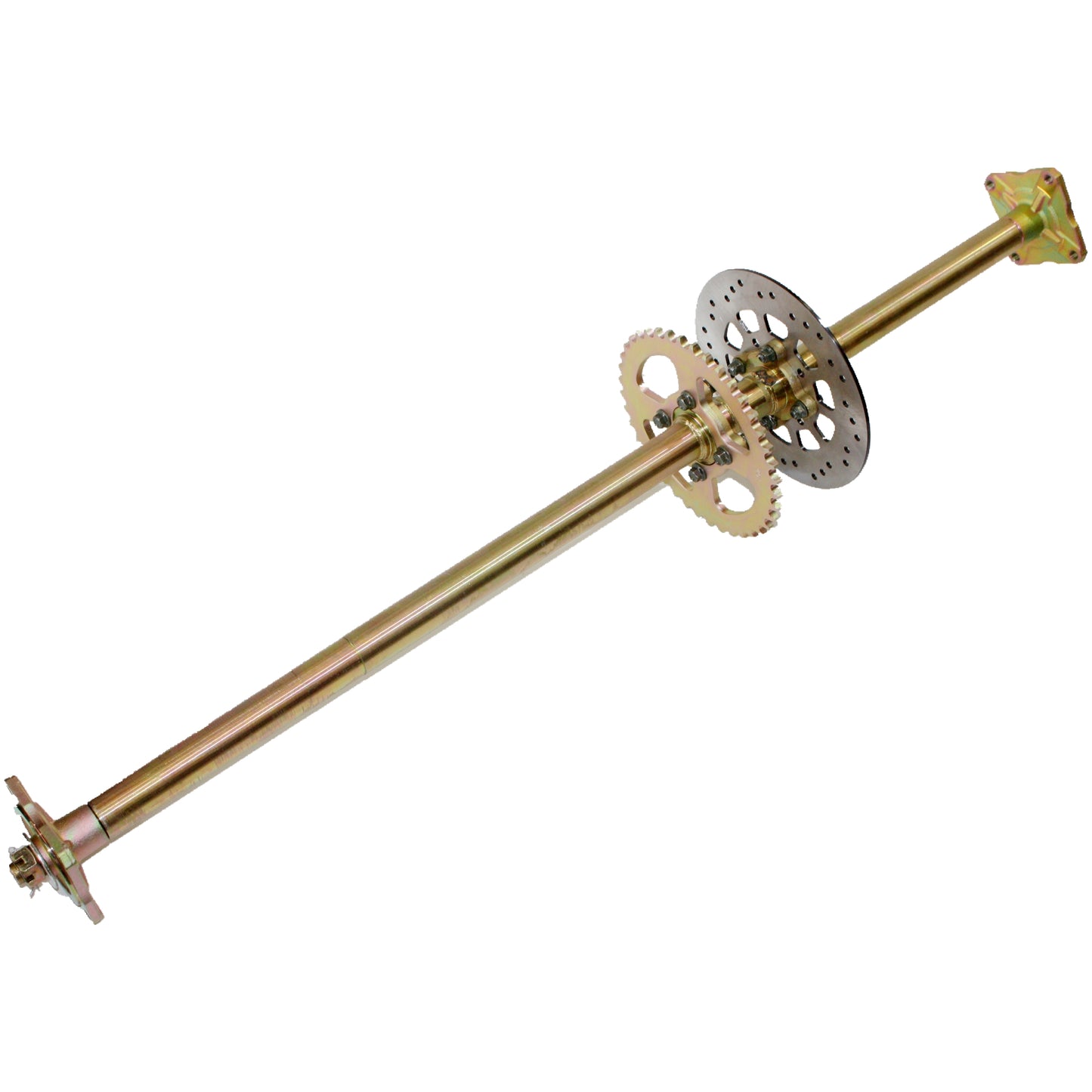

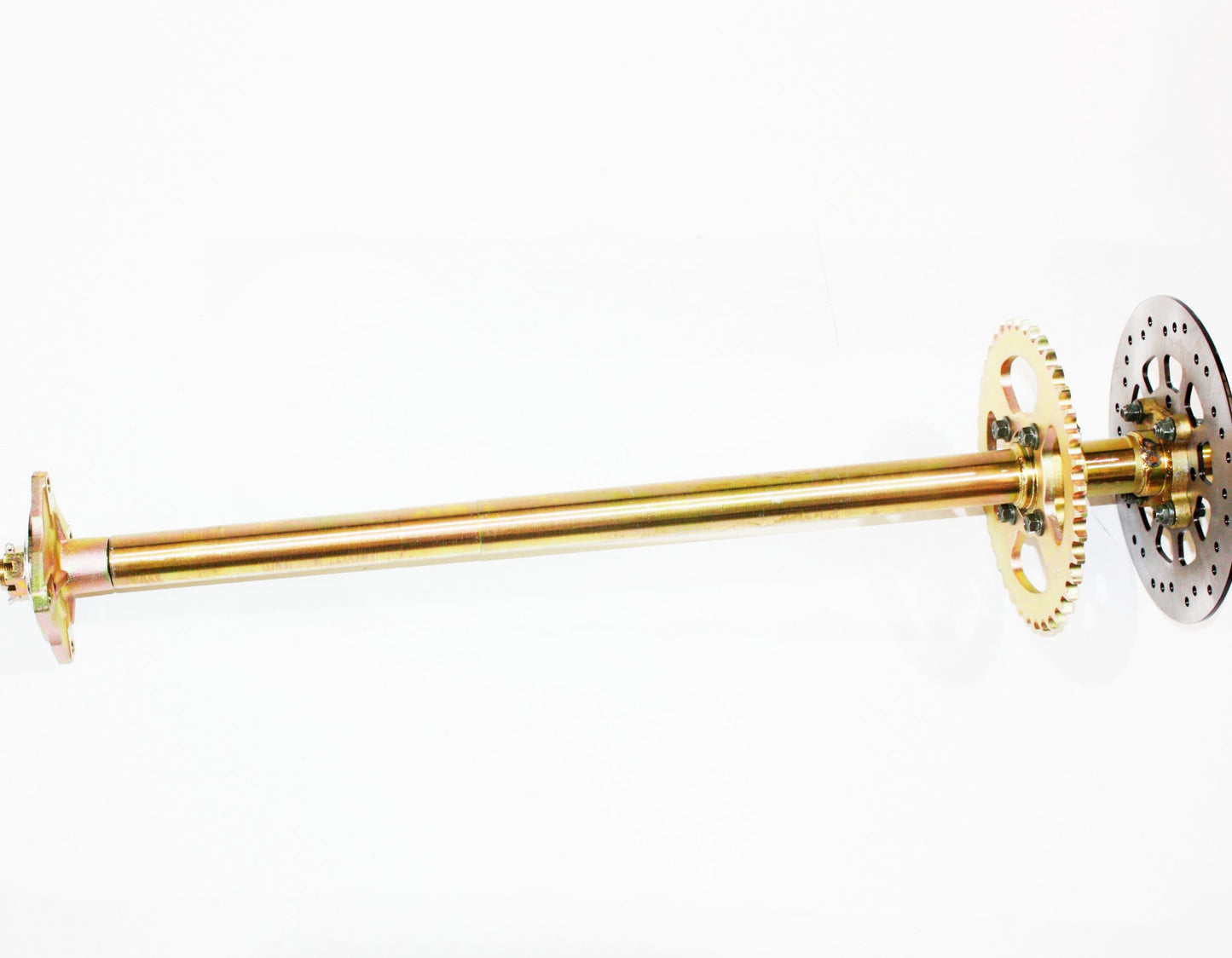

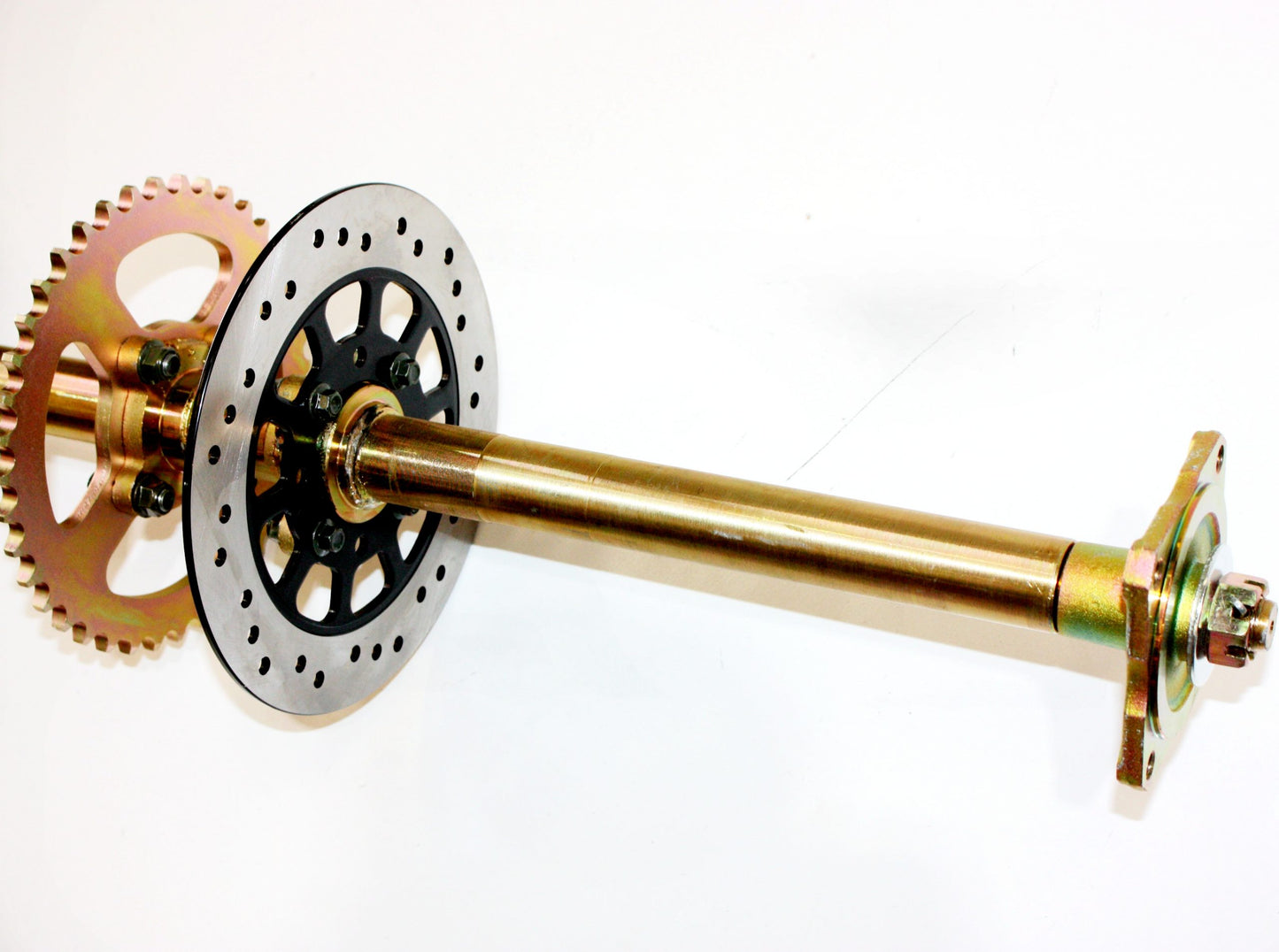

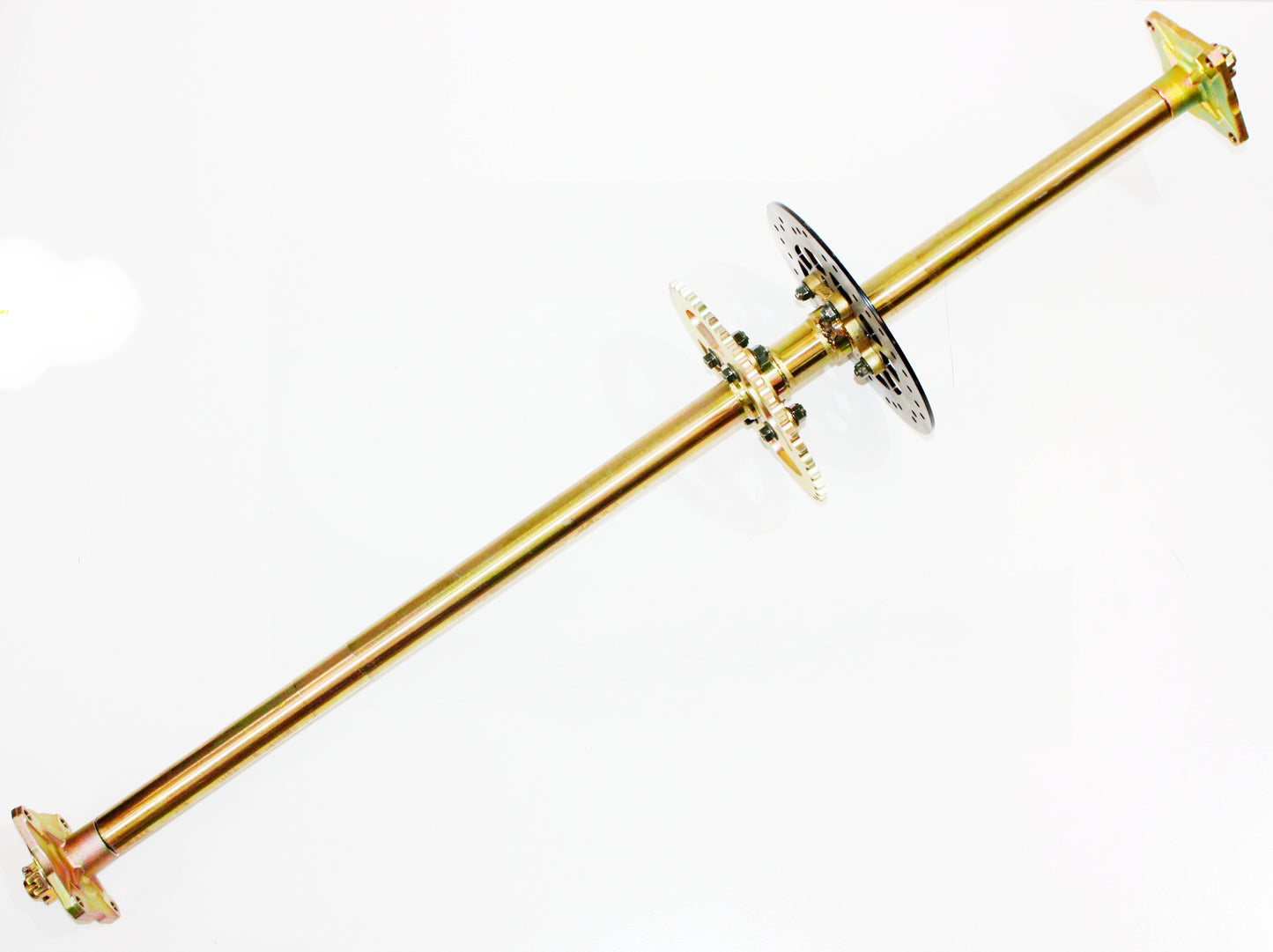

Brand New 1140mm Rear Axle Assembly + 4 Stud Hubs + Rear Sprocket + Brake Rotor Disc KANDI 150cc 250cc Quad Dirt Bike ATV Dune Buggy

LEIGTH OF AXLE approx 1140mm
DIAMETER OF THE AXLE approx 35mm
FROM OUTSIDE EDGE OF HUB TO BRAKE ROTOR DISC approx 340mm
FROM OUTSIDE EDGE OF HUB TO REAR SPROCKET approx 585mm

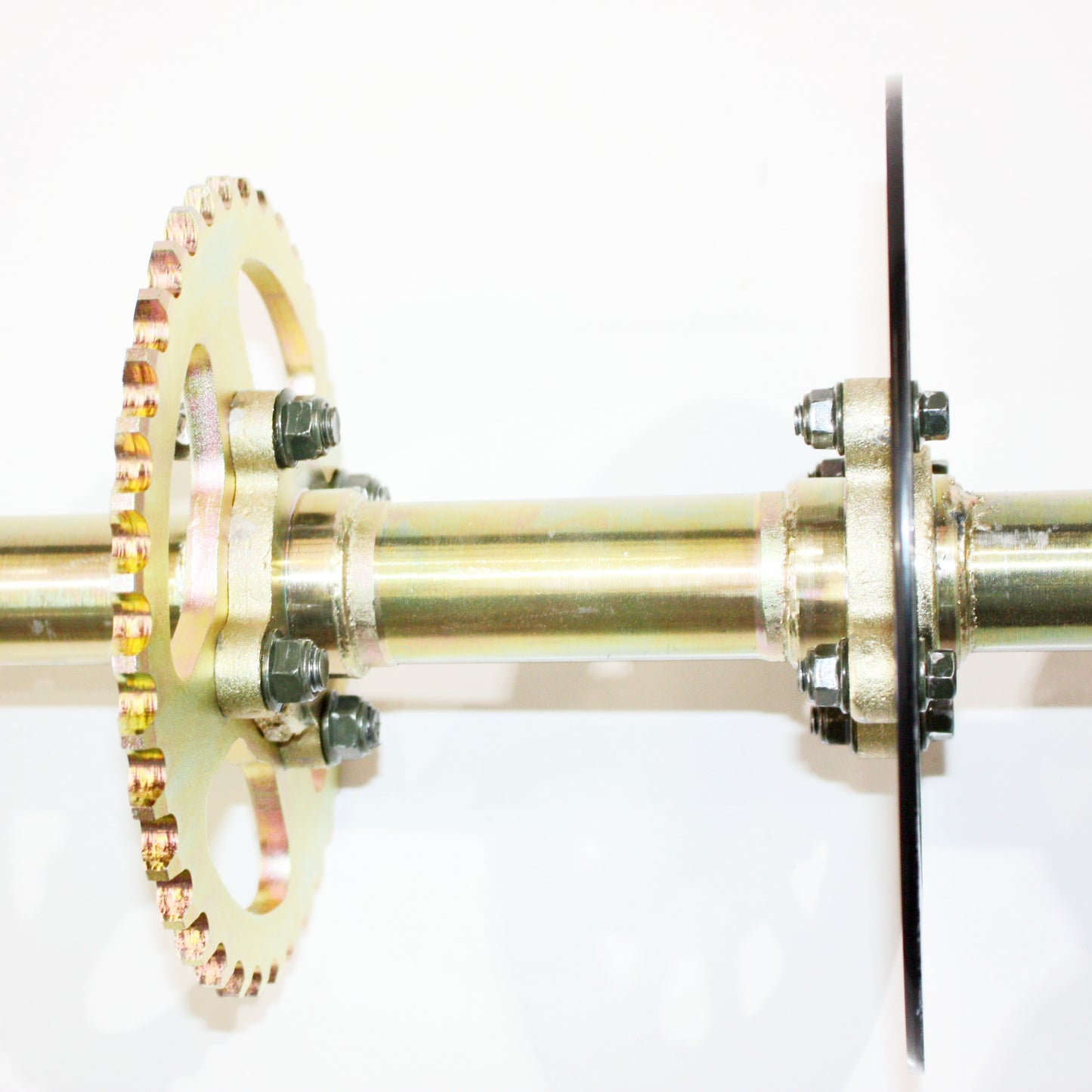

DISTANCE BETEEN BRAKE ROTOR DISC AND REAR SPROCKET approx 145mm
DIAMETER OF BRAKE ROTOR DISC approx 220mm

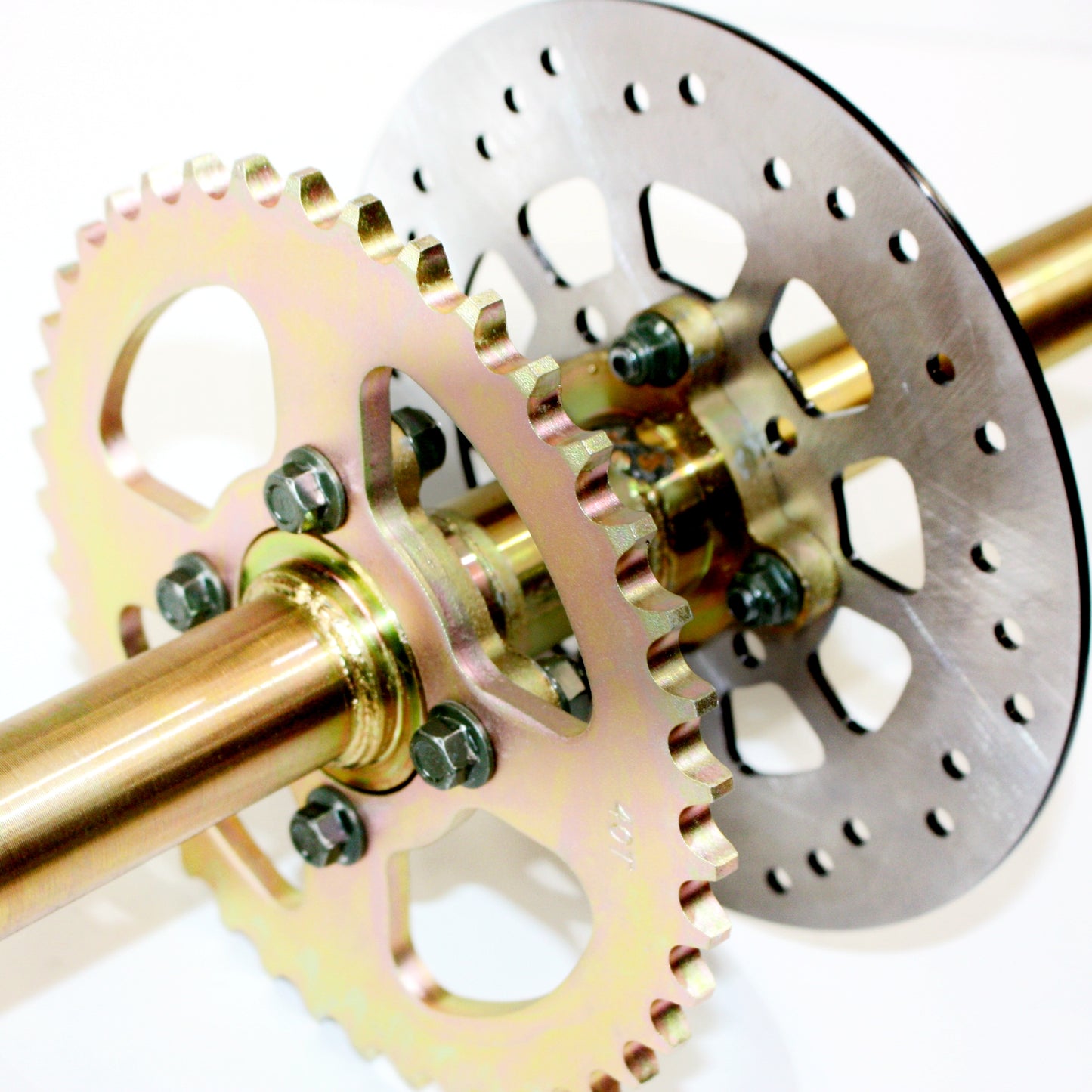

DIAMETER OF REAR SPROCKET approx 195mm 530-37T

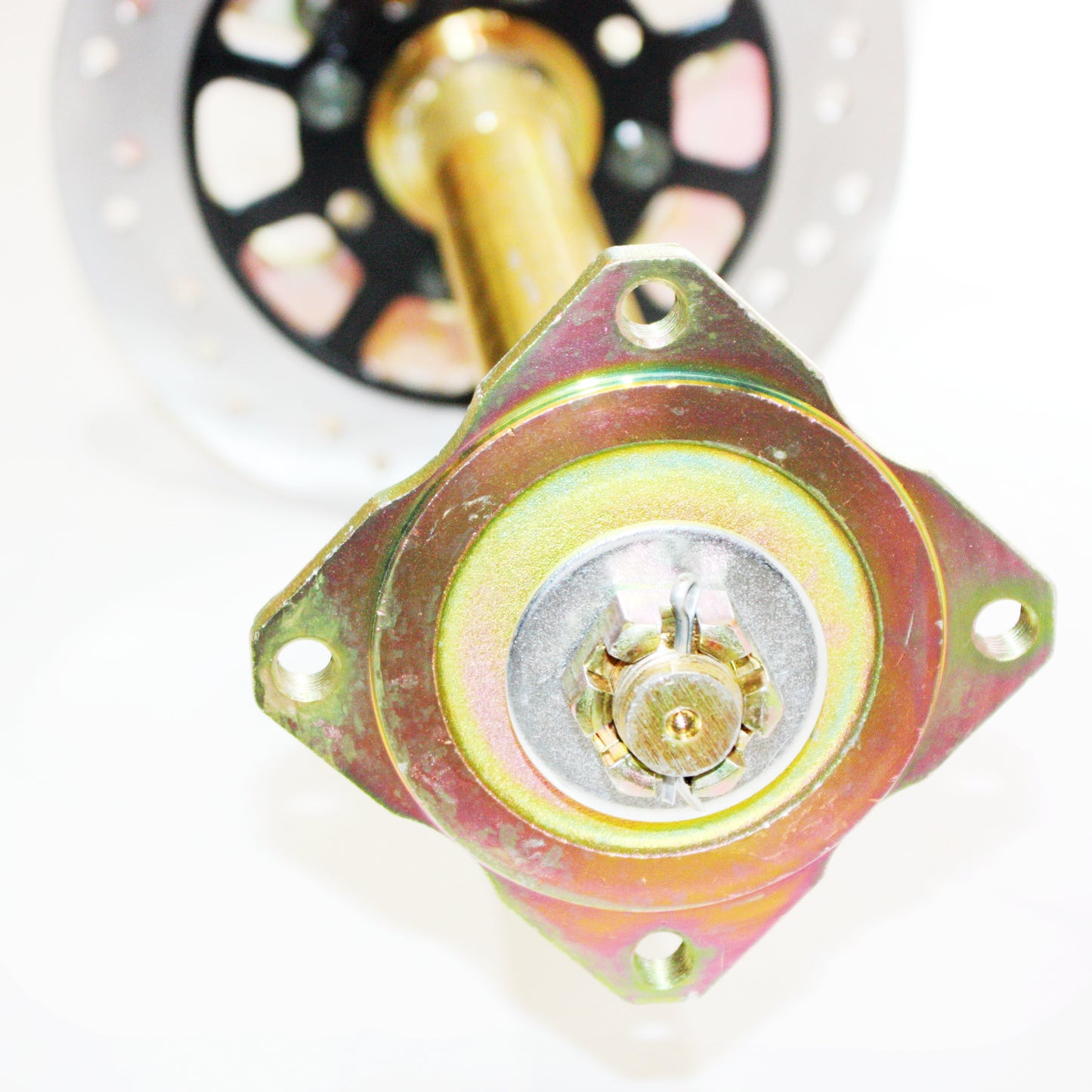

WHEEL MOUNTING DISTANCE OF THE WHEEL HUB (BOLT CENTRE TO BOLT CENTRE) approx 77mm / 108mm
